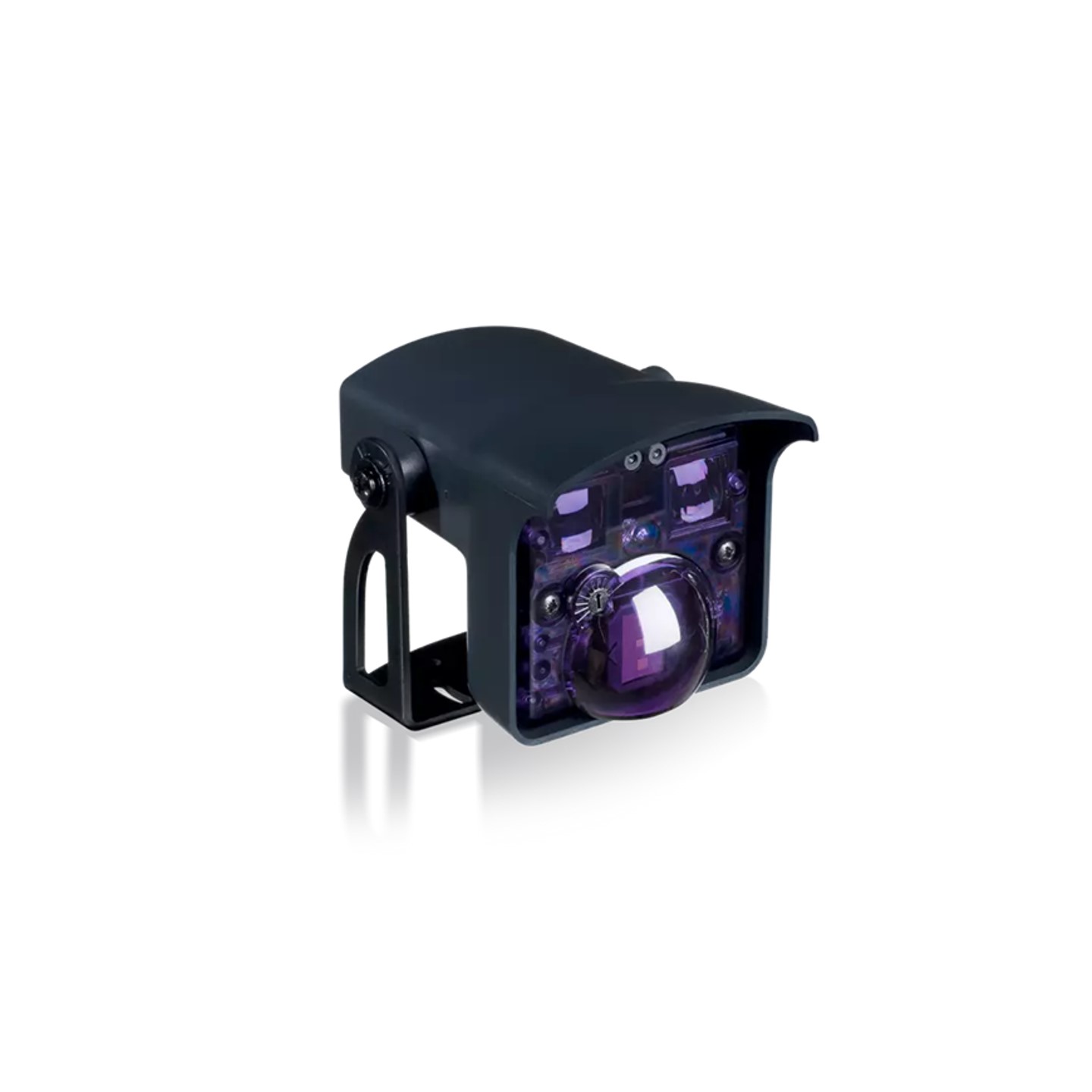

Condor
Motion & presence sensors for high-speed doors

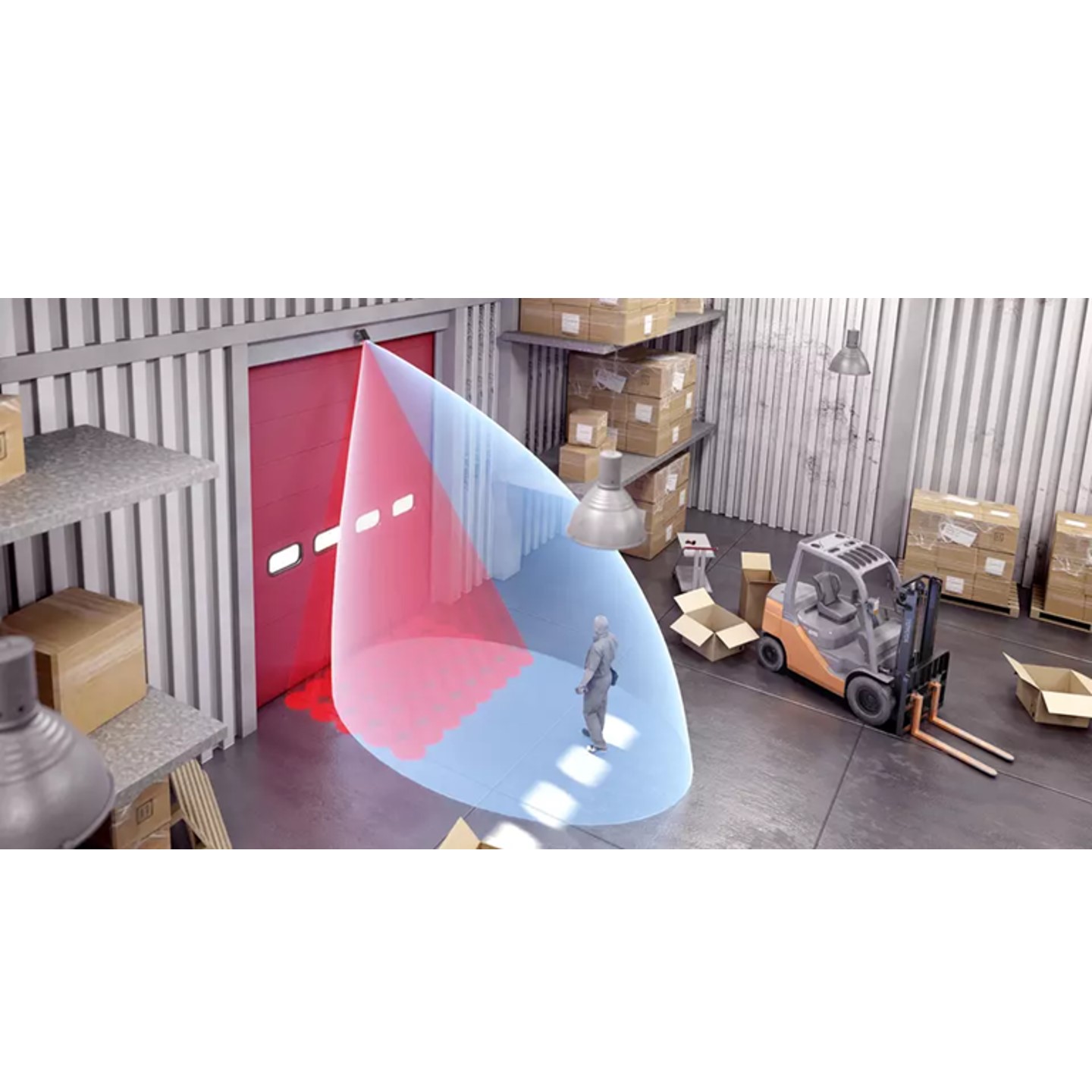

- The Condor sensor combines a radar motion detector and an active infra-red presence sensor in a single device. Reliable opening of your high-speed doors is guaranteed by the planar antenna. Pedestrians in front of the door are filtered out by the incomparable precision of the planar antenna. This means that your door only opens when you really want it to.

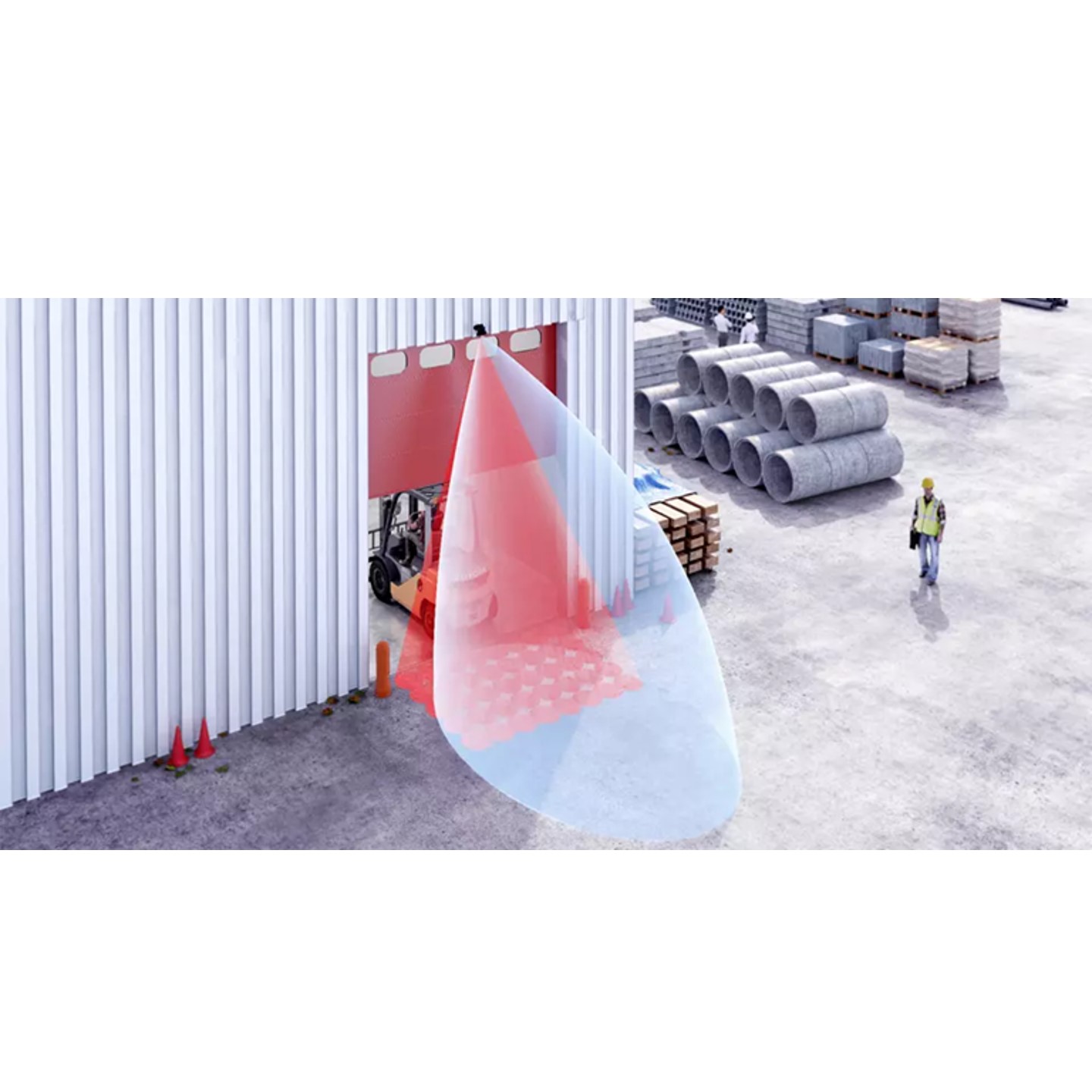

The presence zone of the infra-red technology detects every vehicle that is in the vicinity of the door. The presence detection means that the stop time of your high-speed door can be reduced and that it can be operated in a more energy-efficient manner.
The Condor sensor is of protection class IP65, a robust housing, immunity from door vibrations and disturbances in the environment. Hence the Condor sensor is perfect for use in industrial areas.
You can use the Condor motion & presence sensor for high doors up to 6 m. The Condor XL sensor is suitable for doors up to 3.5 m in industrial environments.
The motion & presence sensor can also be retro-fitted to existing doors.
Condor Specification
Supply Voltage | 12V to 24V AC ±10%; 12V to 24V DC +10% / -3% | Transmission Frequency/Wavelength | 24.150 GHz | 875 nm |
Power Consumption | < 3.5 W / VA | Transmission Power Density | < 5 mW/cm² | < 250 mW/m² |
Frequency | 50 to 60 Hz | Detection Mode | Movement | Movement and Presence |
Output | 2 relays (dry contacts) Maximum Contact Voltage: 42 V AC/DCMaximum Contact Current: 1 A (resistive) Maximum Switching Power: 30 W (DC) / 42 VA (AC) | Detection Area | CONDOR: 4 x 5 m; CONDOR XL: 4 x 2 m* | 4 m x 4 m (transmitter spot***) |
Output Hold Time | 0.5 s | Minimum Detection Speed | 5 cm/s | 5 cm/s (during movement detection) |
Mounting Height | CONDOR: 3.5 m - 6 m; CONDOR XL: 2 m - 3.5 m* | Response Time | 100 ms | 250 ms |
Temperature Range | From -30 °C to + 60 °C | Tilt Angle | -8° - 22° (related to the front panel) | 15° - 45° |
Humidity | 0 - 95% non - condensing | |||
Protection Class | IP65 | |||
Dimensions | 127 mm (L) x 102 mm (H) x 96 mm (W) | |||
Material | ABS and Polycarbonate | |||
Weight | 400 g | |||
Cable Length | 10 m | |||
Compliance | EN 300 440 - 2 V1.4.1; EN 301 489 - 1 V1.9.2; EN 301 489 - 3 V1.6.1;EN 62311; EN 62479; EN 50581 |
