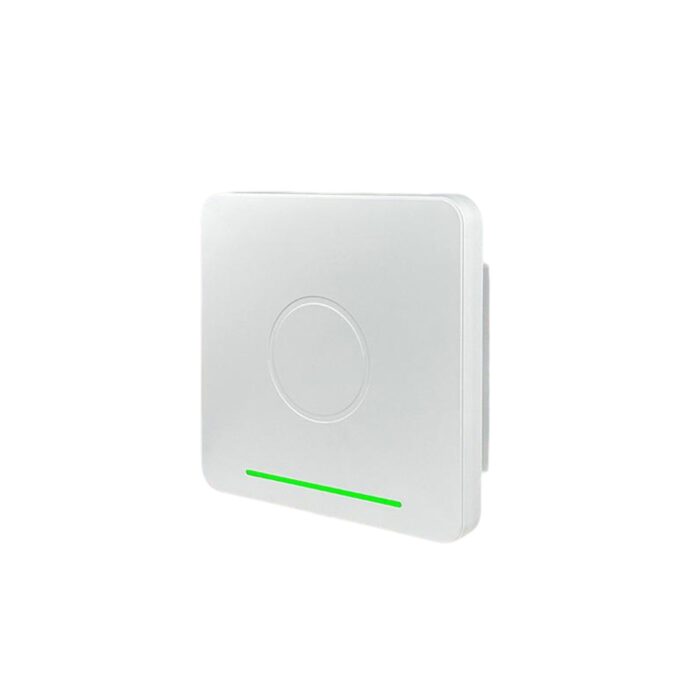

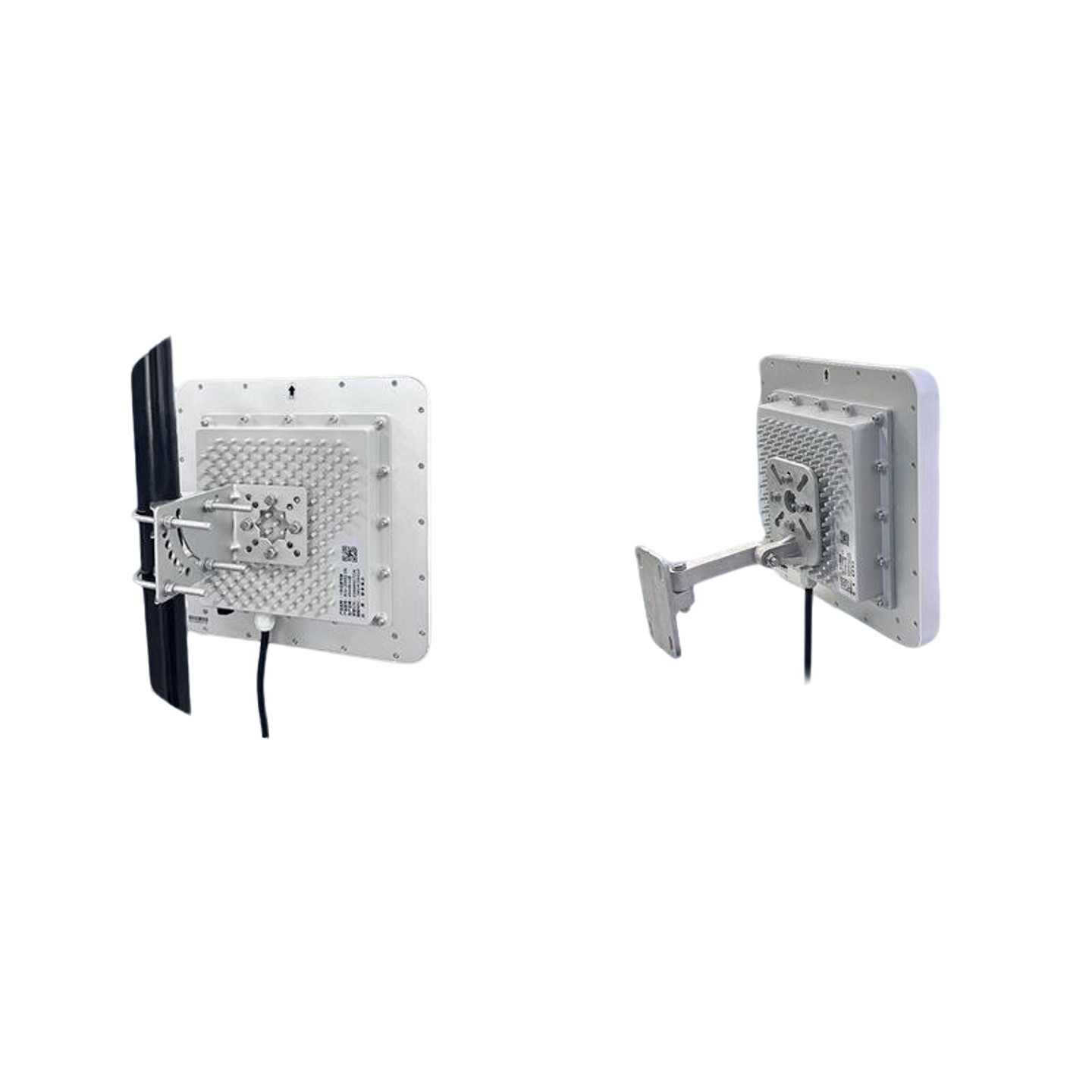

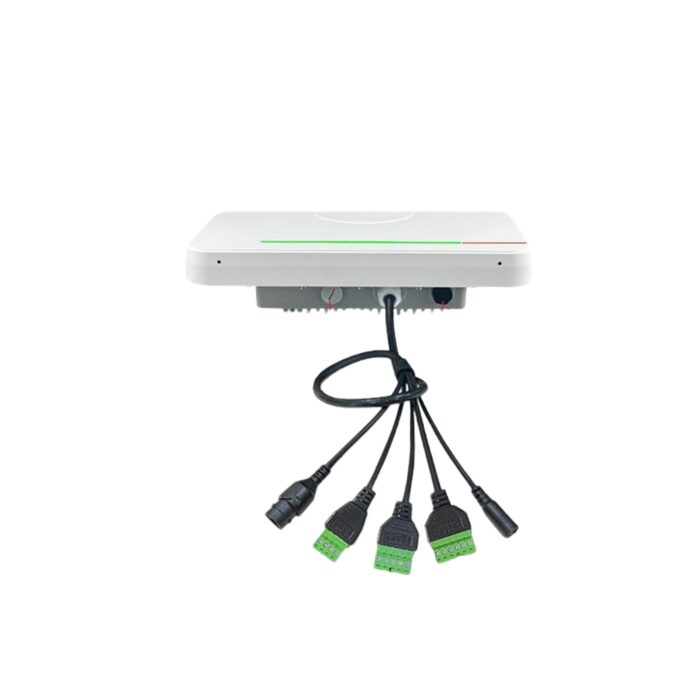

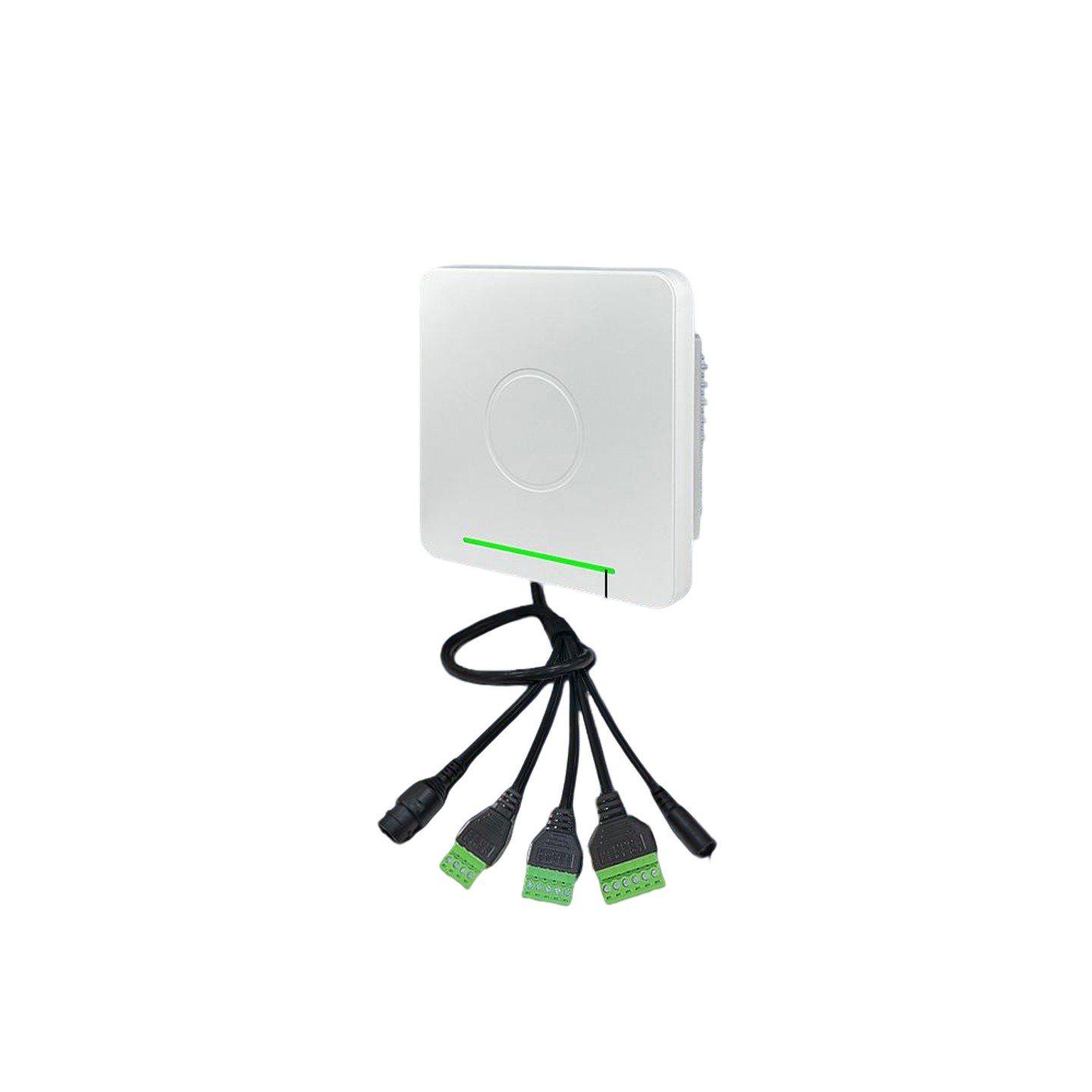

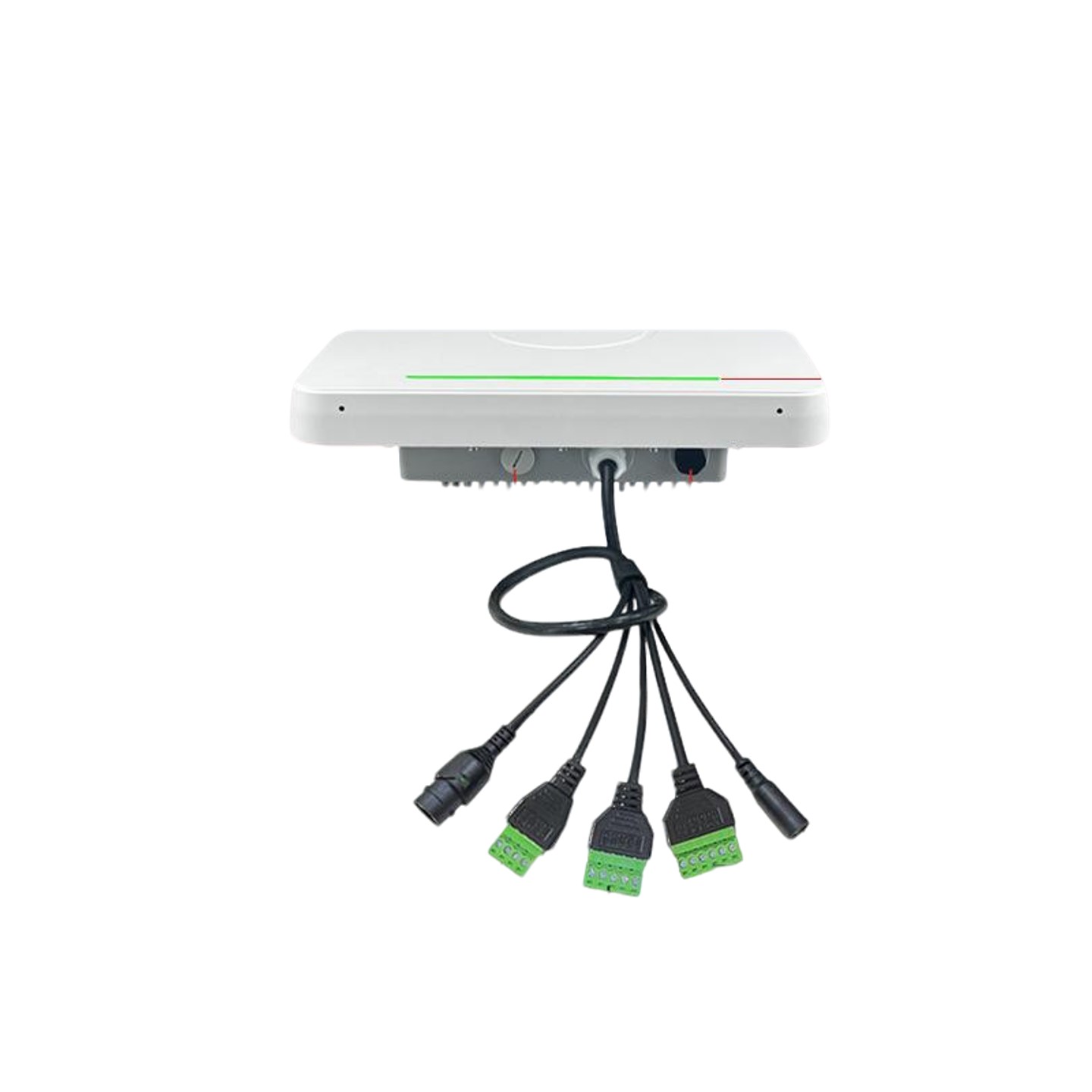

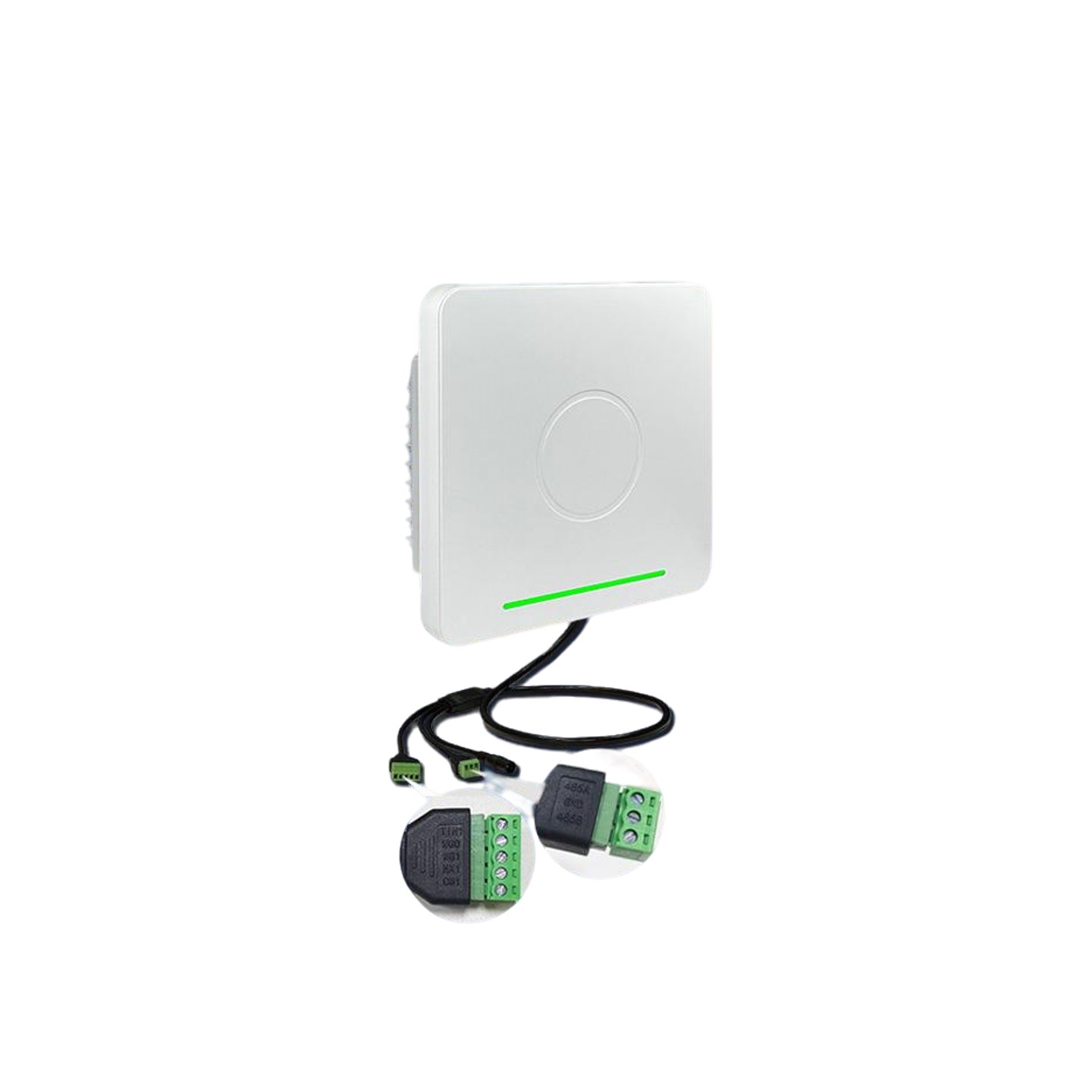

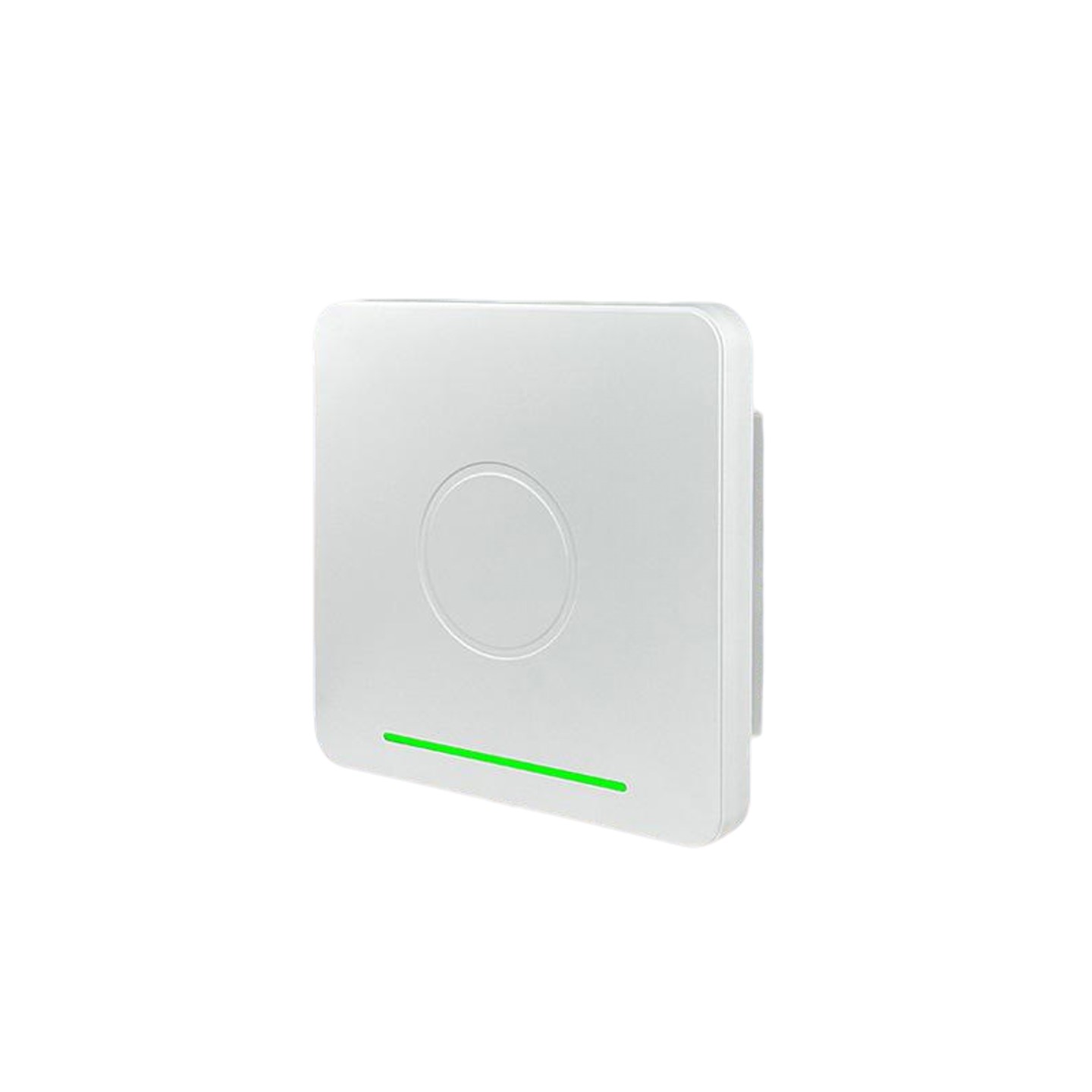

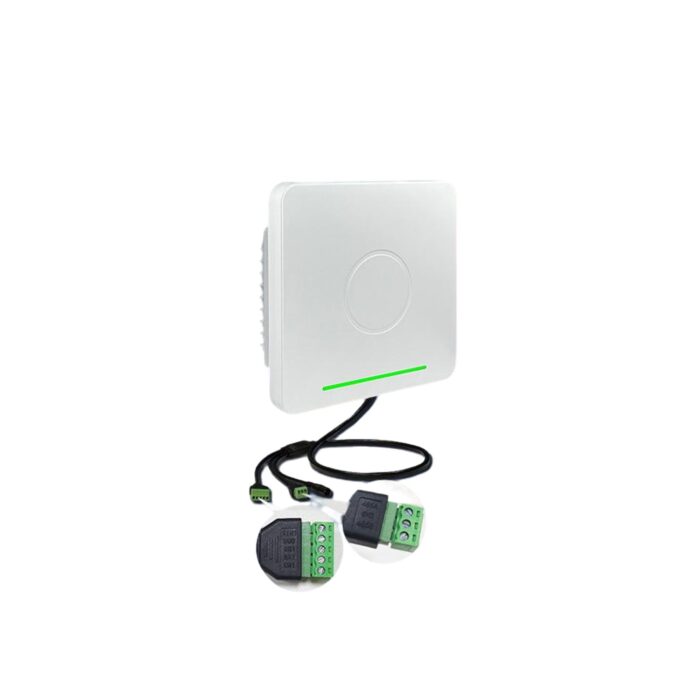

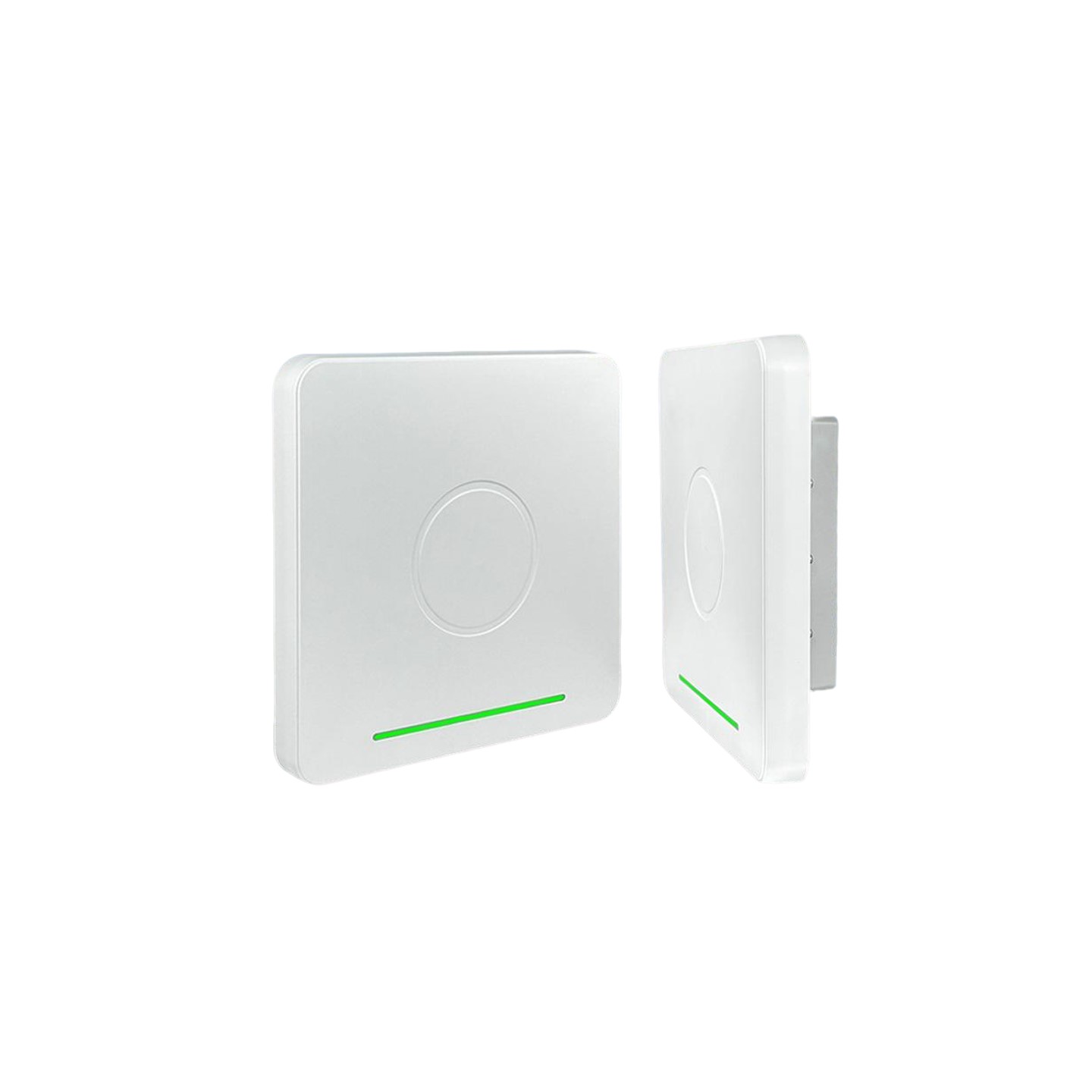

GN-RF RF Vehicle Detector
The GN – RF Radio Frequency Vehicle Detector is an intelligent detection device with excellent performance. With features such as long – range reading and multi – protocol support, it can accurately identify vehicles and provide reliable technical support for scenarios like industrial door control, personnel access control management, and intelligent parking management, helping various fields achieve efficient and intelligent vehicle management and traffic control.
GB-RF Specification
| Protocol Support | IS0 18000-6C(EPC C1G2)/1S0 18000-6B | PoE Support | 37-57VDC,IEEE 802.3af/at Compliant(Optional) |
| Frequency Range | 902-928MHz(US),865-868MHz(EU/CN),Customizable | Operating Voltage | Standard:DC 9-24V;PE:DC 37-57V |
| Output Power | 1-32dBm(R2000:1-33dBm,default30dBm,Software-Adjustable) | Power Consumption | 12W(Max.) |
| Read Distance | 0-10m,R2000:0-15m(Tag/Environment-Dependent) | Dimensions | 260x260x60mm |
| Write Distance | 0-50cm(Tag/Environment-Dependent) | Weight | 1.3Kg |
| Identification Speed | >30 tags/sec ;R2000:>200 tags/sec (Tag/Environment-Dependent) | Material | ABS+PC |
| RS232 Interface | Baud Rate Options:115200bps(Default),:9600bps,19200bps,38400bps, | Protection Rating | IECIP65 |
| RS485 Interface | 56000bps | Operating Temp. | -20~+70掳C |
| l/0 Interface | 2 Relay Outputs, 2 Opto-lsolated inputs | Operating Humidity | -5%RH~95%RH(Non-Condensing) |
| Ethernet Interface | 10M/100M Adaptive (TcpServer/TcpClient Switchable, Cross-Network Transmission) | Storage Humidity | -10%RH-95%RH(Non-Condensing) |
| Wiegand interface | Supports Wiegand 26/34 Standards | Certification | Meet The Radio Type Approval Requirements Of China |
| Power interface | DC 5.5x2.5mm jack + 3.5mm Terminal | ||
