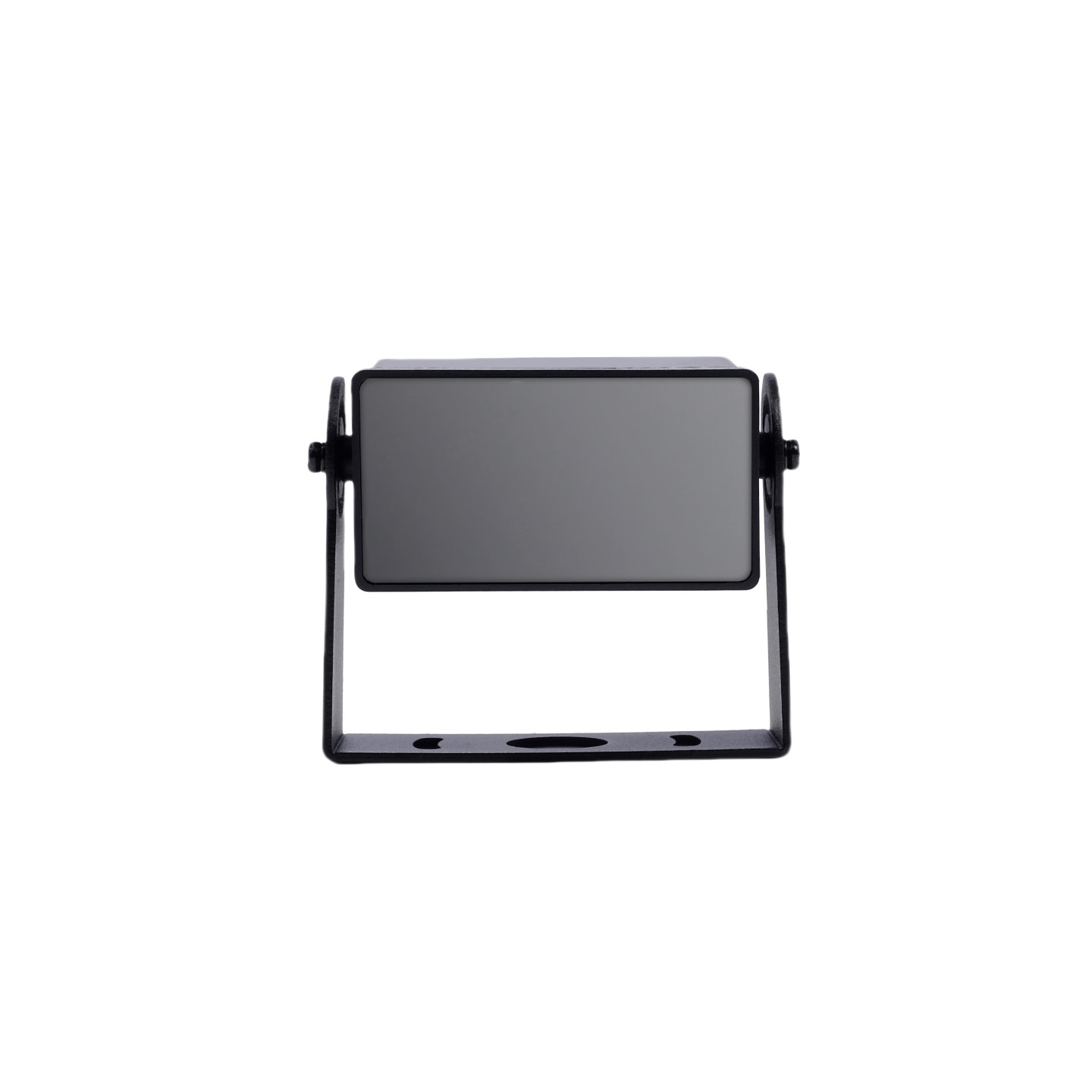

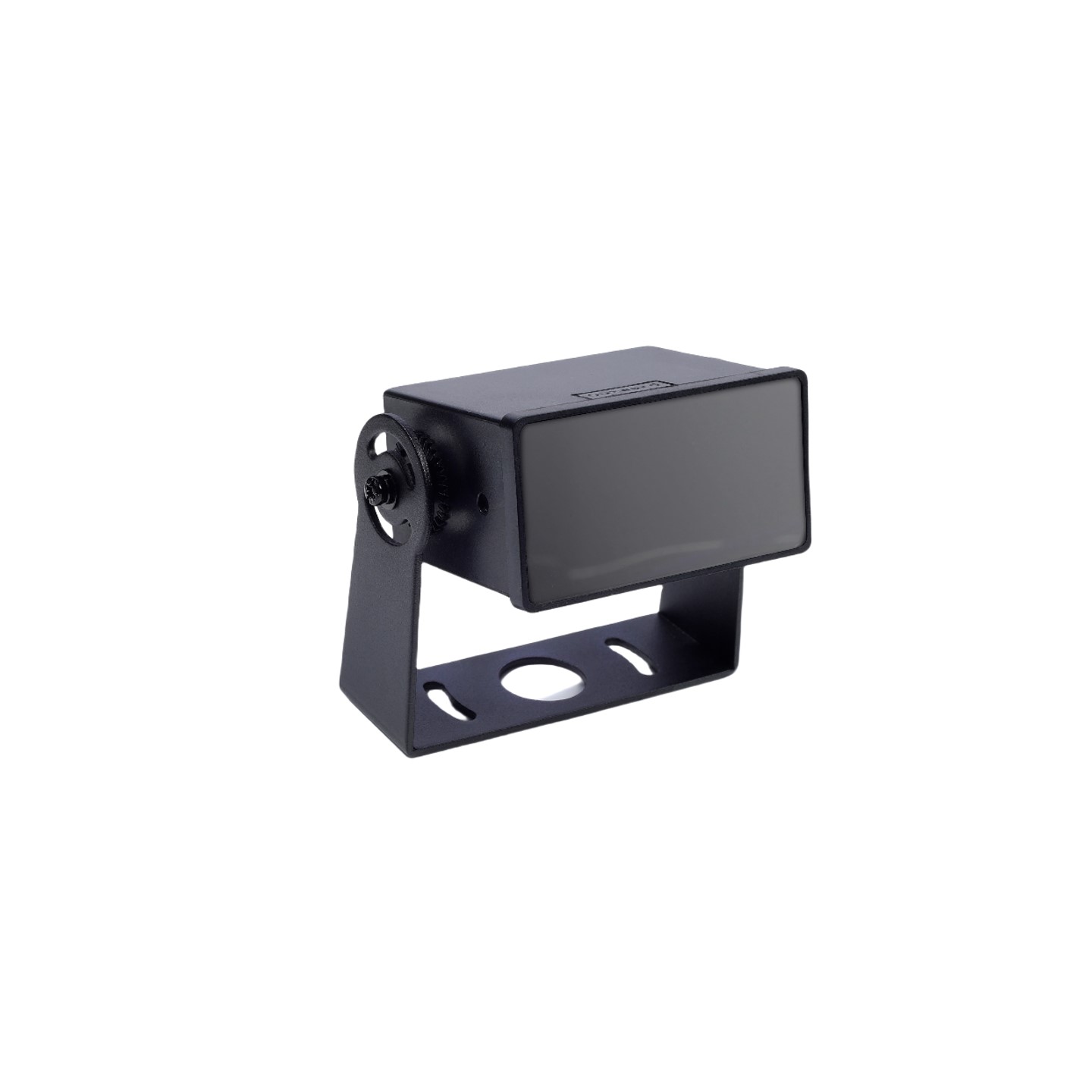

LCS401
2D safety laser curtain

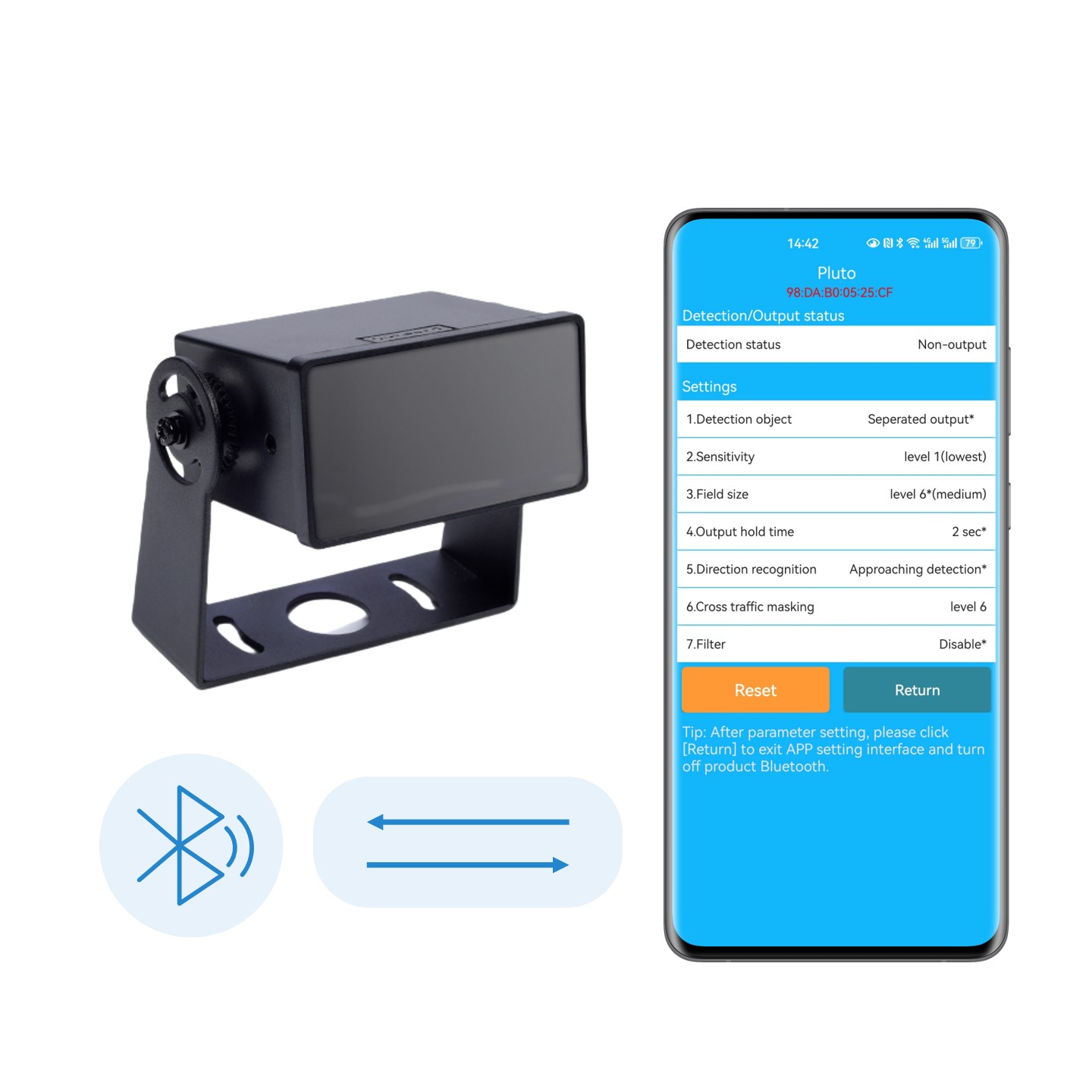

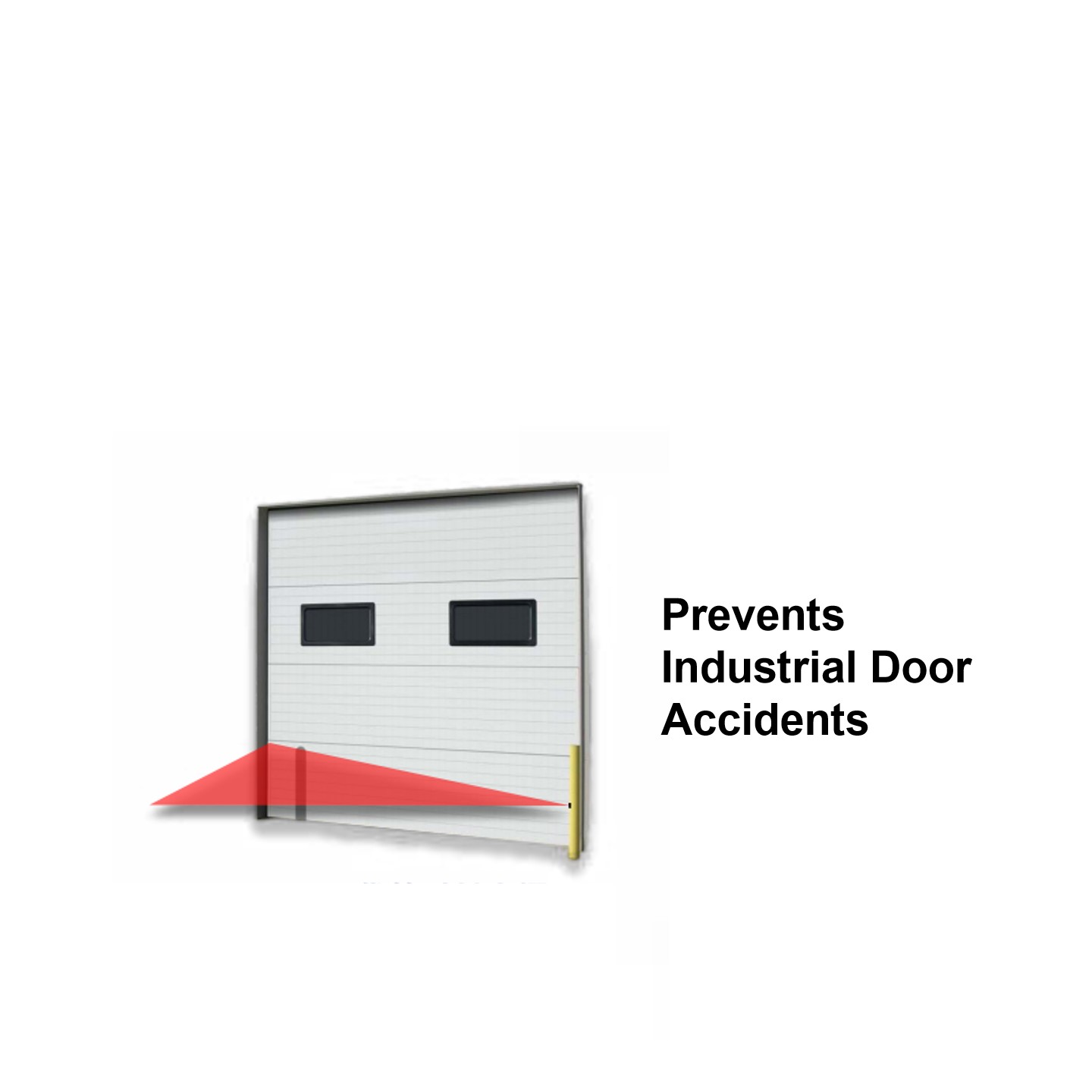

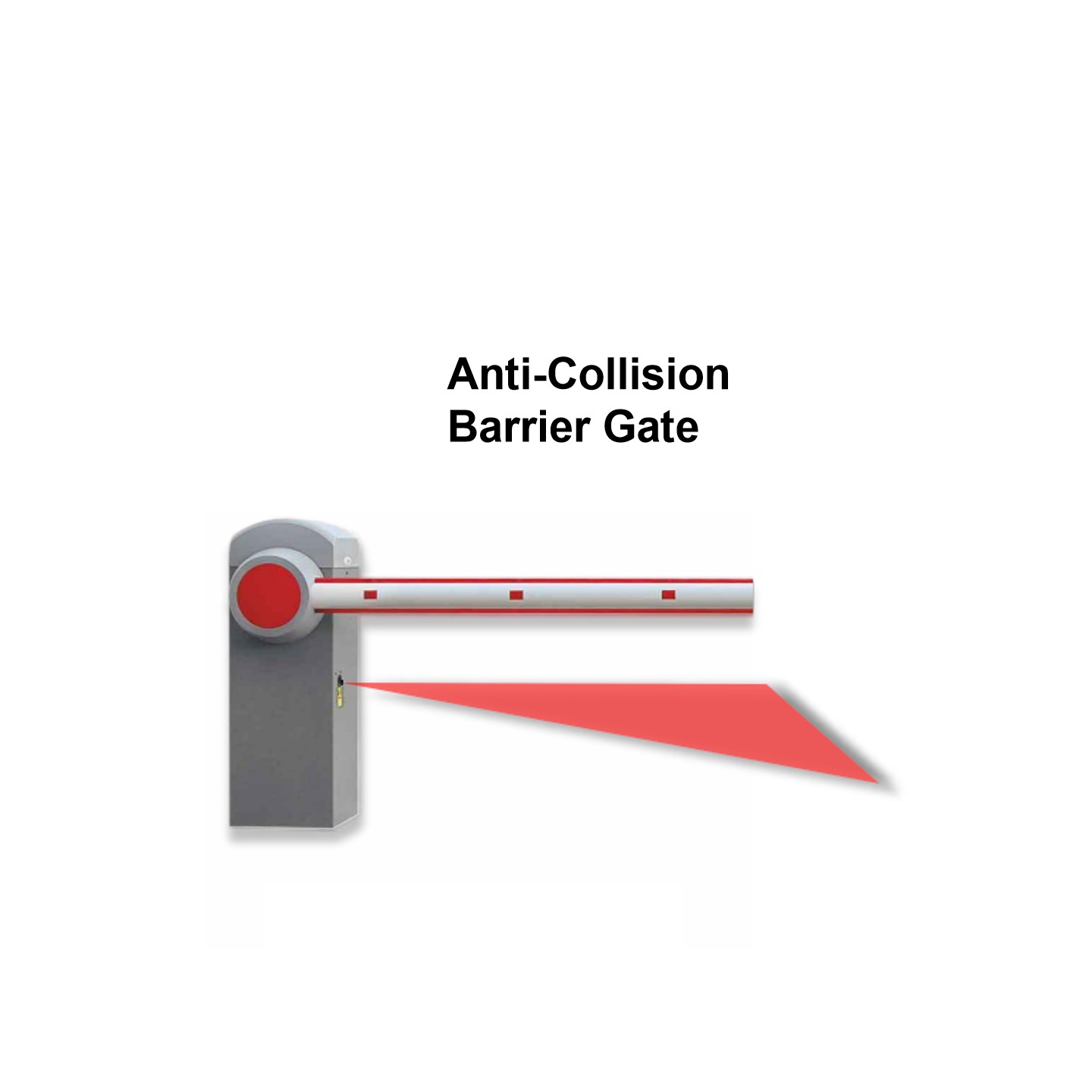

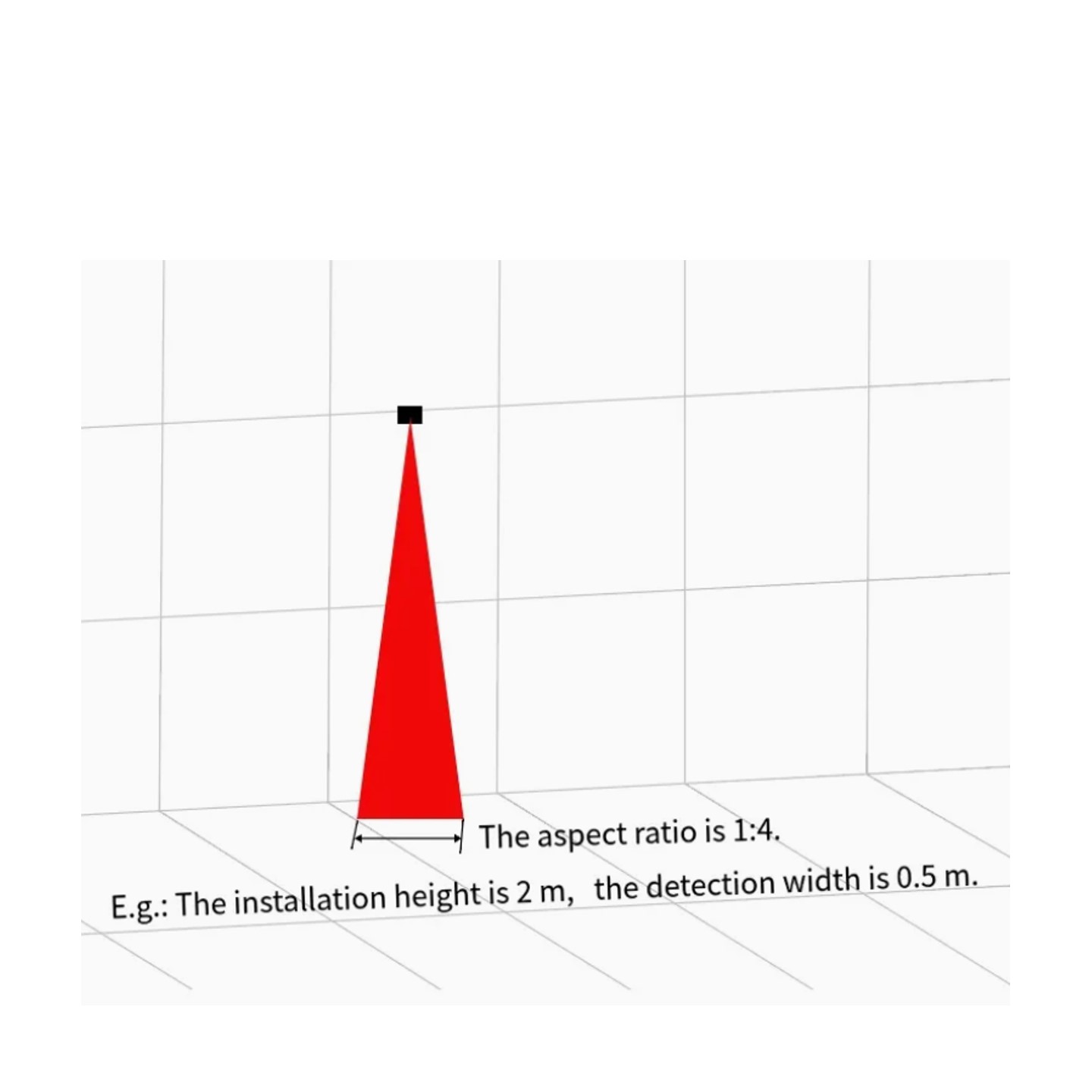

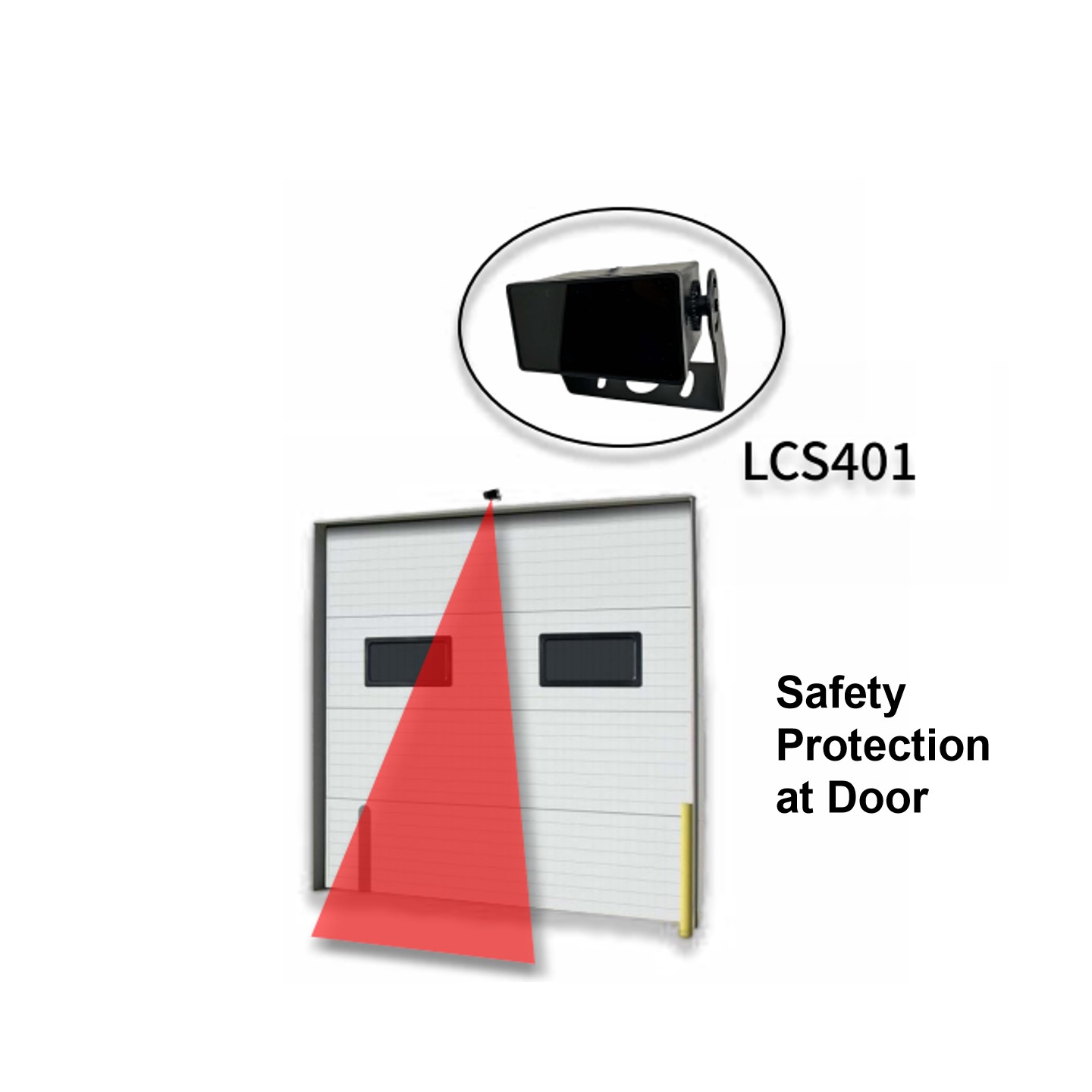

The LCS401 is a 2D laser safety light curtain specifically designed for industrial doors, garage doors, and barrier systems. With a 10-meter detection range and a 1:4 aspect ratio, it delivers reliable performance even in challenging lighting conditions. Featuring a 905nm VCSEL laser source and IP65 protection, it achieves ±5cm detection accuracy and supports tool-free parameter configuration via mobile app, ensuring efficient anti-collision and anti-pinch protection for both personnel and equipment.
LCS401 Specification
| Detection range | 10m @90%reflectivity 0-2.5m @10%reflctivity |
| Accuracy | ±5cm |
| Range resolution | 1cm |
| Frame rate | 1-250HZ(adjustable) |
| Ability to resist ambient light | 100Klux |
| Operating temperature | -30℃~60℃ |
| Protection class | IP65 |
| Light source | VCSEL |
| Central wavelength | 905nm |
| Human eye safety | Class1(IEC60825) |
| FOV | 14° |
| Power supply | 12-36V AC/DC |
| Average current | ≤70mA |
| Consumption | ≤0.35W |
| Peak current | 150mA |
| Output | 48VACDC,100mA |
| Dimension | 53mm x 47mm x 57mm |
| Housing material | ABS |
| Cable length | 3m |
| Weight | 250g |
