LEO

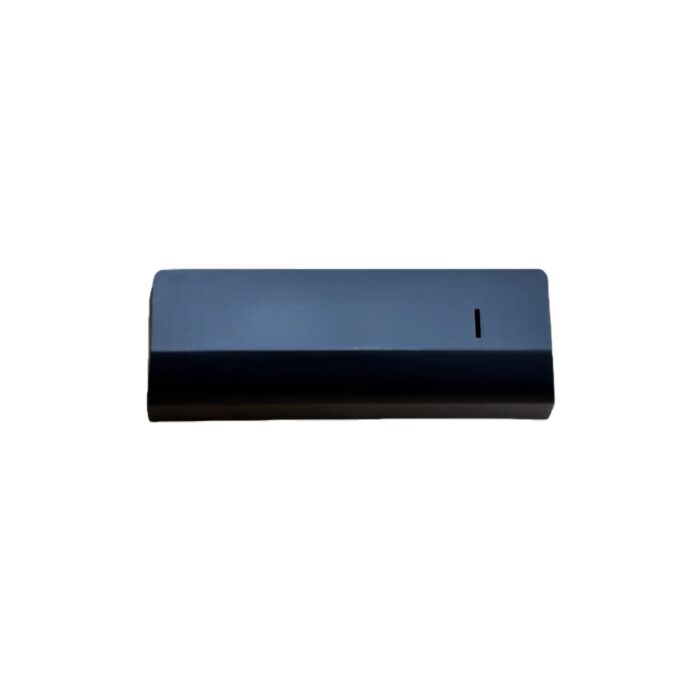

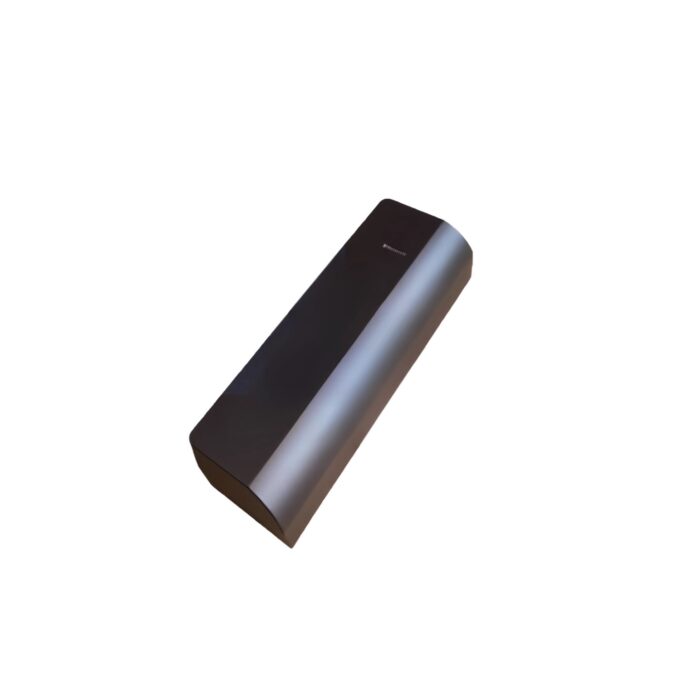

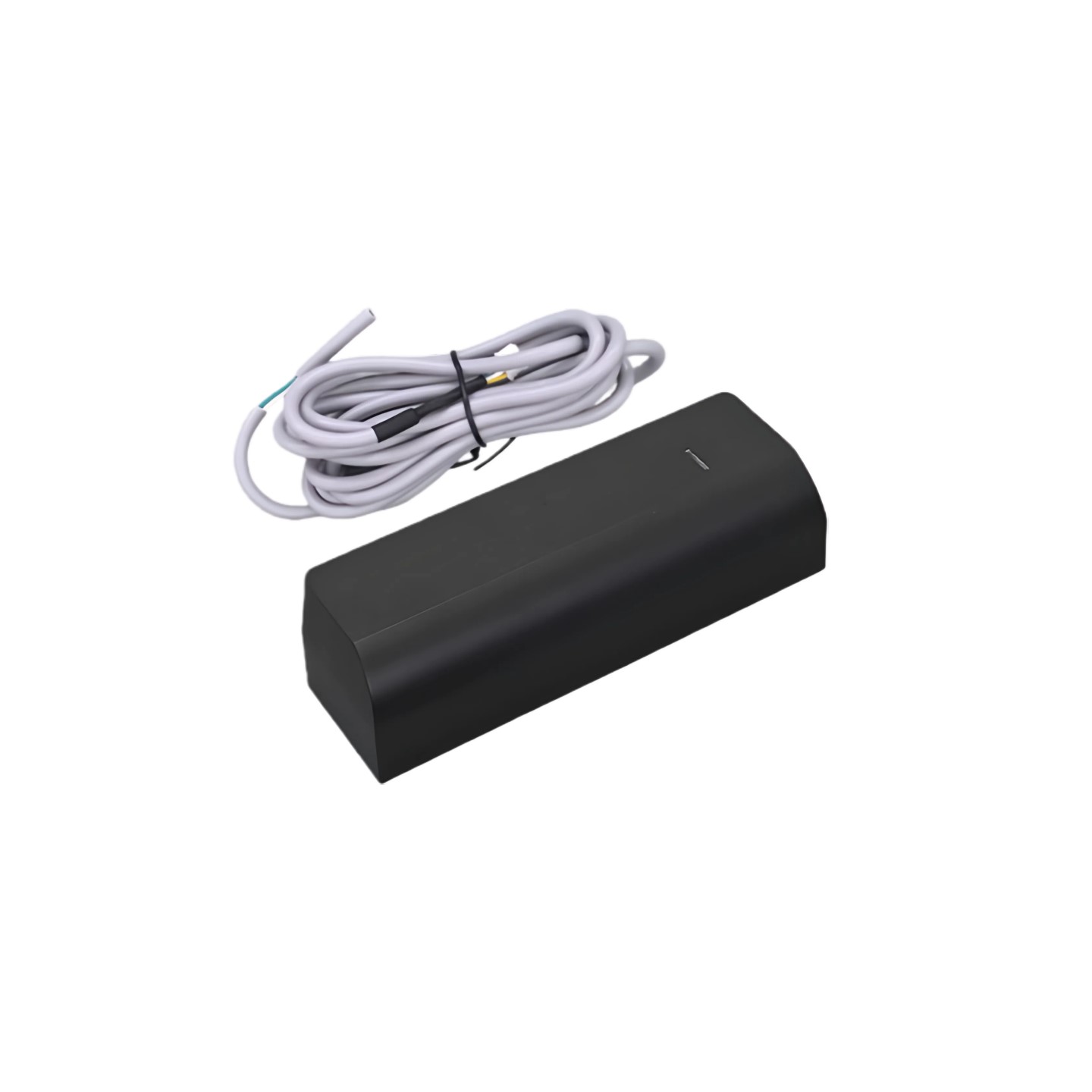

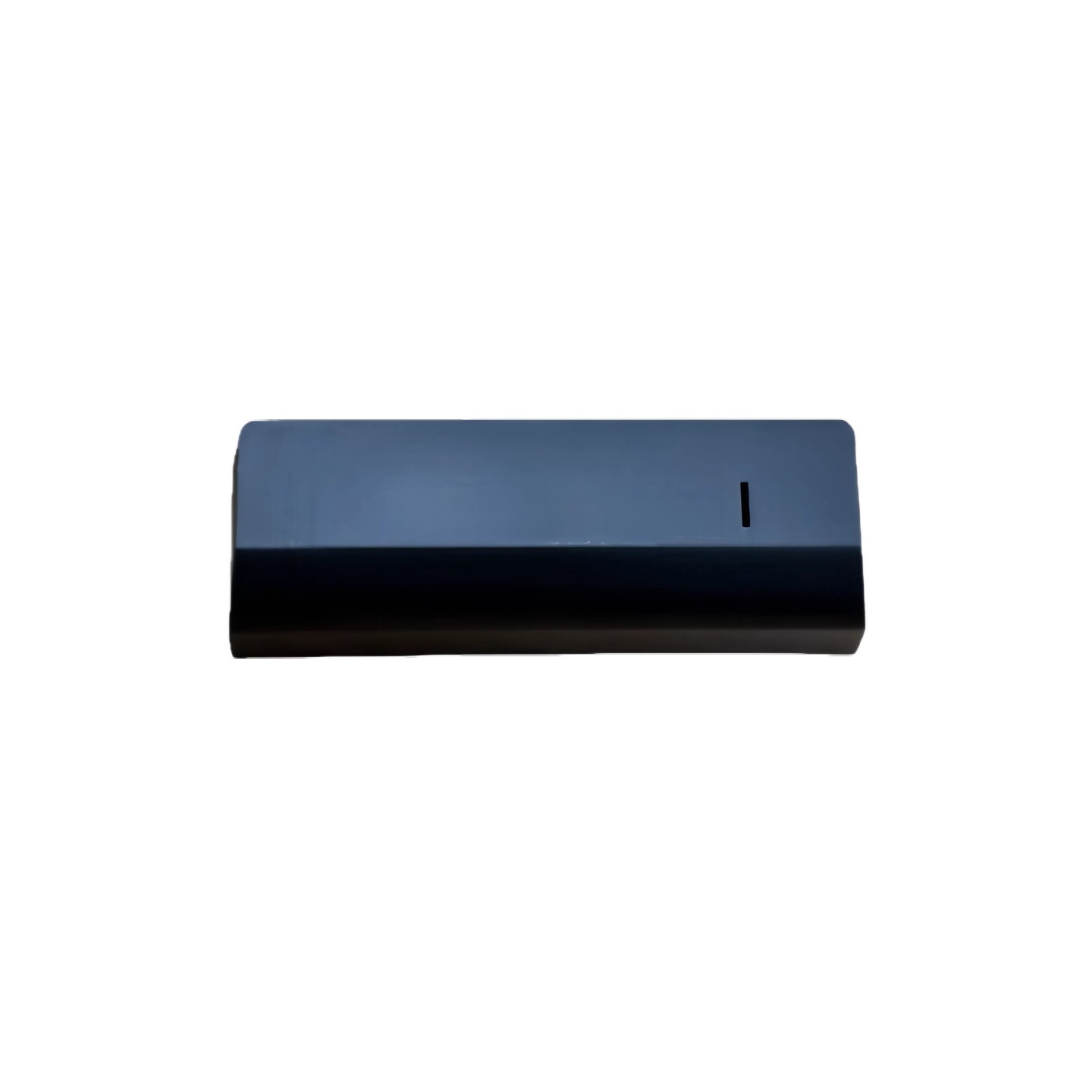

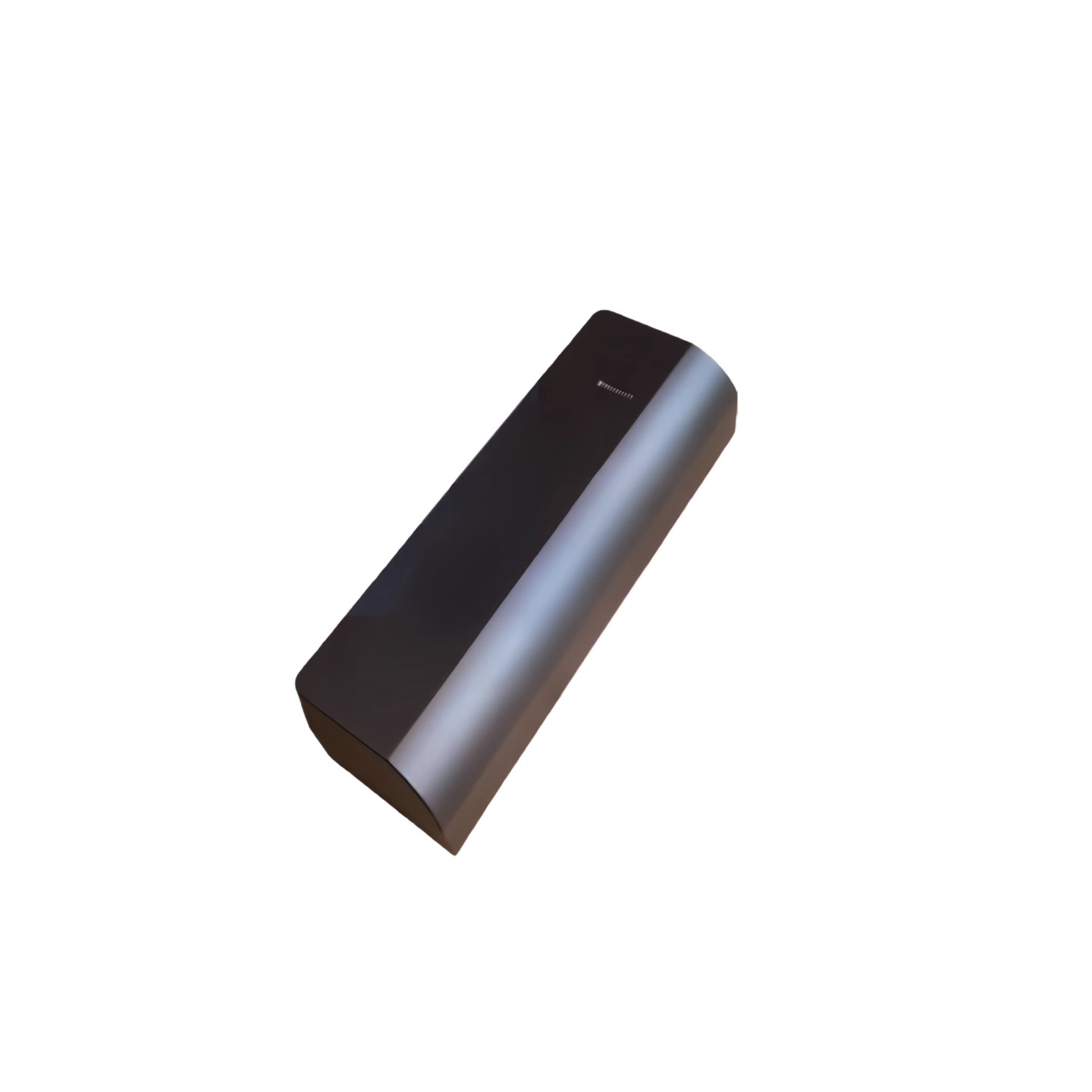

Microwave motion sensor
- Unidirectional , energy-saving
- Unaffected by rain and snow
- Maximum range of 6 meters, suitable for most automatic doors
- Adjustable angle: 0-90° vertically, -30° to +30° horizontally
- Detection range adjustable via potentiometer
- Simple structure, easy wiring
- High cost-performance microwave radar for automatic door activation
Leo Specification
Microwave Motion Sensor Leo
| Technology | Doppler Radar | Maximum Installation Height | 6m |
|---|---|---|---|
| Emission Frequency | 24.125GHz | Angle | 0° To 90° (Vertical) -30° To +30° (Horizontal) |
| Emission Power | <20dBm EIRP | Detection Range | (Installation Height @4m) 4m (W.) X6m (D.) |
| Detection Height | Motion | Power Supply Voltage | 12V To 30V AC/DC 30%-10% |
| Minimum Detection Speed | 5cm/s (Along Sensor Longitudinal Axis) | Maximum Contact Current | 1A (Resistive) |
| Power Consumption | <2W (VA) | Maximum Switching Power | 30W (DC)/60VA (AC) |
| Maximum Contact Voltage | 30V AC/DC | Temperature Range | -20°C To +55°C |
| Protection Rating | IP54 | Housing Material | ABS Plastic |
| Housing Color | Black; Silver Gray | Housing Dimensions (L*H*D) | 120mm×80mm×50mm |
| Weight | 0.215 Kg | Cable Length | 2.5 m |
