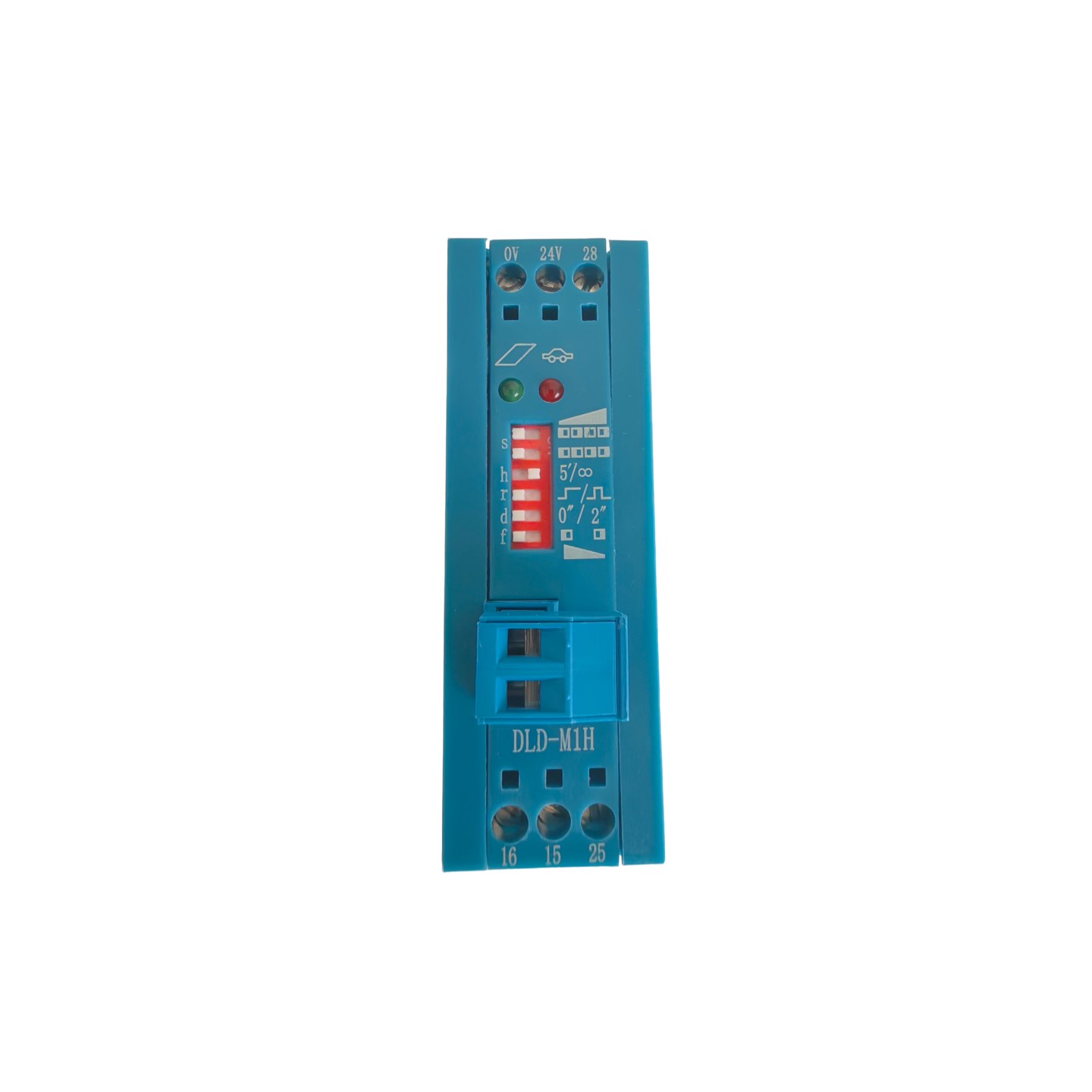

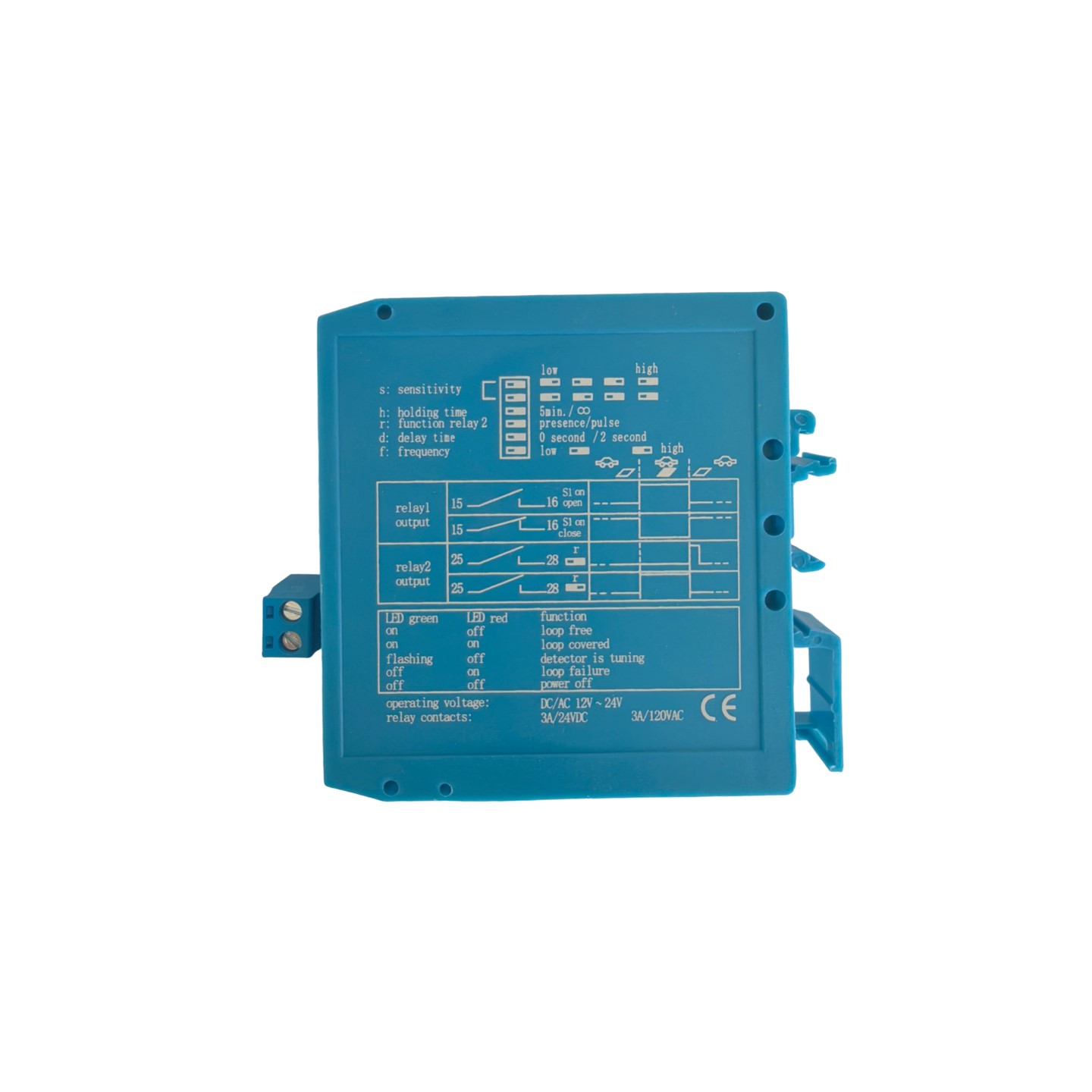

Inductive Vehicle Detector LPD
Reliable Vehicle Detection And Relay Output
Widely Used For Parking Lot Card Reading, Barrier Anti-Collision, Automatic Barrier Lowering, Vehicle-Triggered Door Opening or Closing
Compact Plastic Housing With Built-In Terminal Block For Secure Connections
Industrial-Grade Design With High Reliability And Environmental Adaptability/Built-In Microprocessor Chip
Electrically Isolated Loop Circuit For Enhanced Reliability
Automatic Sensitivity Calibration
Environmental Drift Compensation
Loop Status LED Indicator
Dual Relay Output With Three Configurable Modes
Four-Level Adjustable Sensitivity
Four-Level Adjustable Operating Frequency
Five-Minute Auto-Reset Function
Configurable Output Delay (0s Or 2s)
LPD Specification
| Operating Voltage | AC/DC 12~24V | Loop Cable Requirement | Max 5m, 20 Twists Per Meter |
| Operating Temperature | -25℃~65℃ | Sensitivity Adjustment | 4 Levels |
| Operating Humidity | ≤90% (Non-Condensing) | Relay Specifications | AC120V 3A |
| Operating Frequency | 20~130KHz | Recommended Loop Size | Minimum 1*2m |
| Recommended Loop Inductance | 100uH~300uH |
