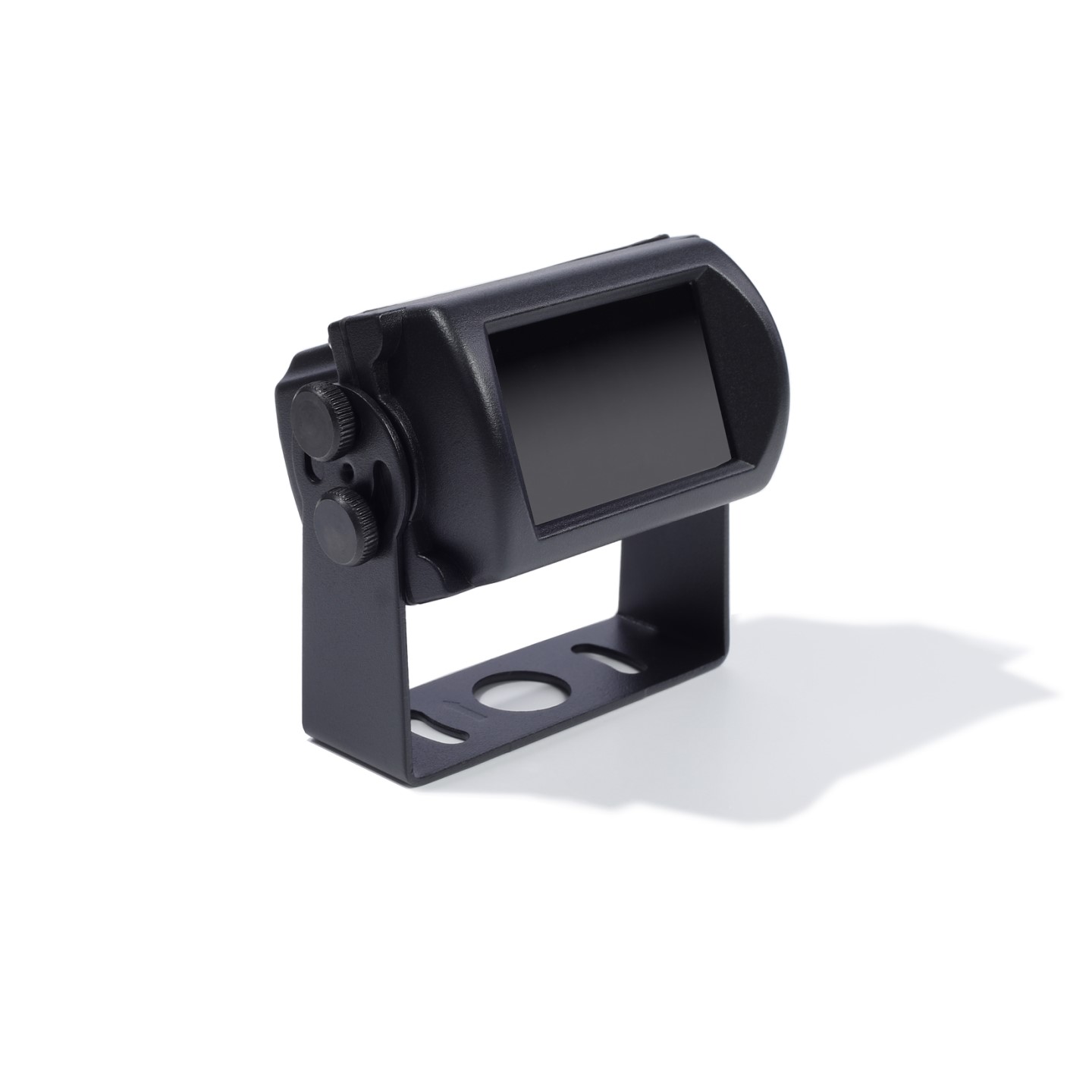

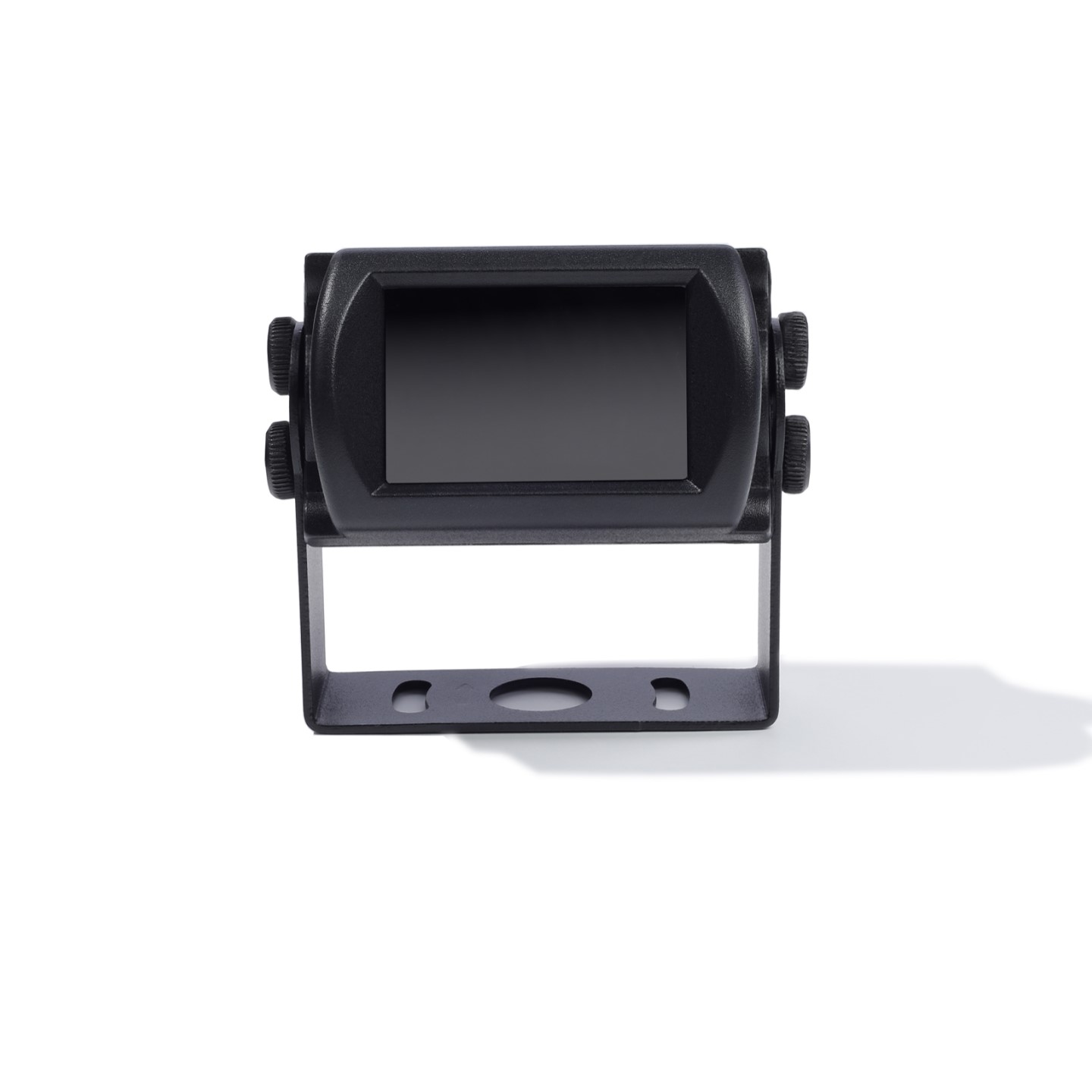

PANO Microwave Motion Sensor

New generation microwave motion sensor, with a maximum height of up to 10 m and a detection area of up to 100 m². It features a output hold time 1-30s options and allows parameter settings via App. Suitable for industrial doors, automatic doors, security surveilance, industrial warning applications,etc.

PANO
Industrial Radar

New generation industrial radar Max. 10m height and 100m² zone App settings
IP65 metal housing Switch ON/OFF radar Hold time 1s-30s options
Suitable for cold storage applications

Pano Specification

Application technology	Doppler radar
Transmission frequency	24.125 GHz
Transmission power	<20dBm
Detection height	Standard:2m to 6m;X:10m
Angle adjustment	0° - 90° longitudinal
Detection speed	5 cm/s ~ 60 km/h
Detection zone	8m*6m @6m height
Temperature	-30℃ to +60℃
Humidity	0% to 95%，Non-condensing Dew
Voltage	12-36VACDC
Current	Max. 75mA
Housing material	Aluminum
IP rating	IP65
Output	Max. voltage48VAC/DC；Max. current 0.1A
Dimension	75mm x 45mm x 75mm
Cable length	3m
Weight	280g
