300mm Single Side Red Cross Green Arrow Roadway Safety Products Traffic Light

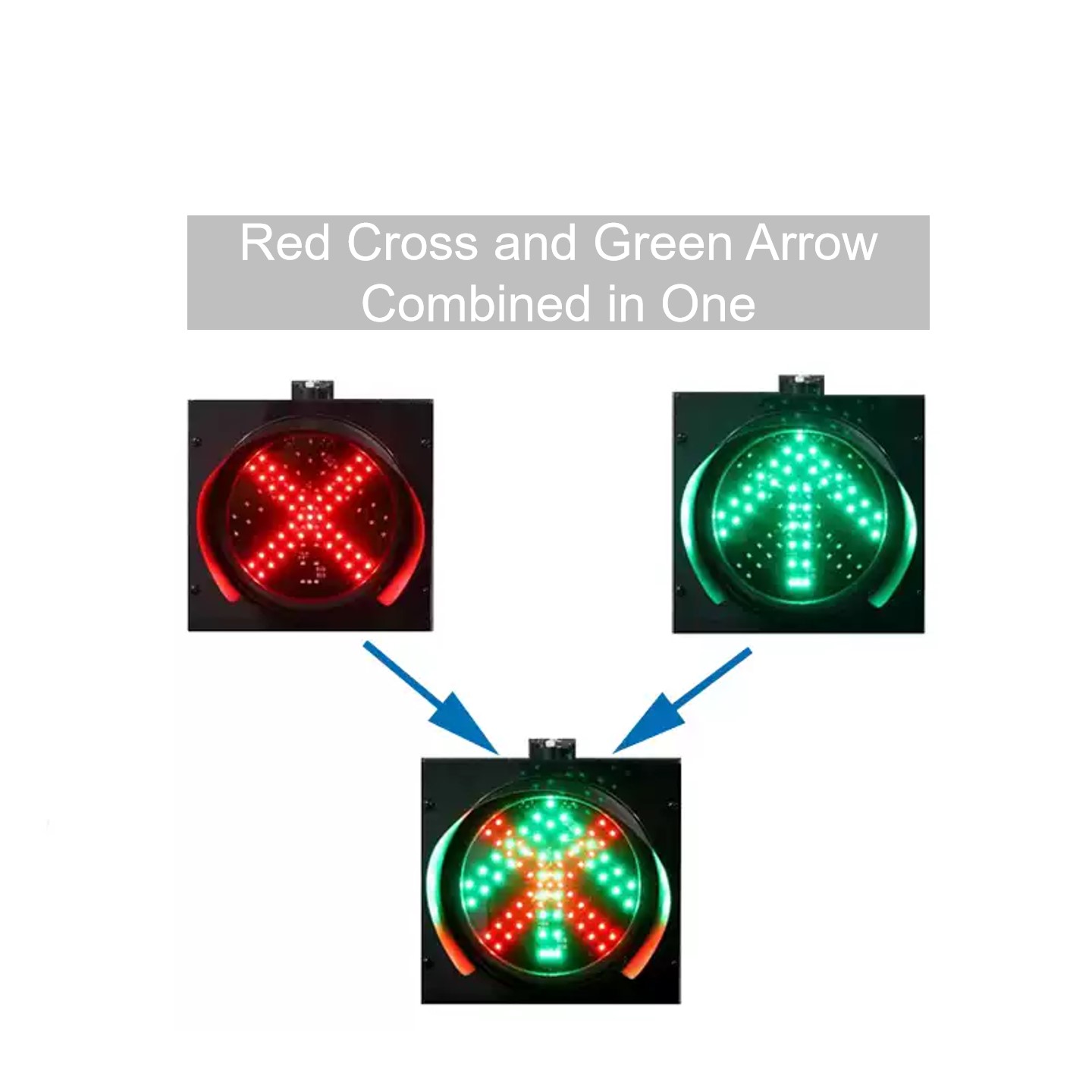

This innovative safety product seamlessly integrates the red cross (×) and green arrow (↓) into a single, compact display unit, delivering clear and unmistakable warnings for industrial traffic and hazardous areas. When the vibrant green arrow is illuminated, it signals that the path is clear and safe to proceed. Conversely, the bright red cross commands immediate attention, alerting personnel to stop or avoid the area due to potential dangers such as approaching forklifts or machinery movement. Crafted with a dedicated ABS housing, the unit is not only incredibly lightweight but also exhibits remarkable strength, minimal deformation in extreme temperature conditions, and exceptional corrosion resistance – ideal for demanding industrial environments.
Traffic Light Specification
Display Content | Single Side Red Cross Green Arrow | IP Rating | IP65 |
Communication Mode | RS485 | Housing Material | PC, Black Spraying Housing |

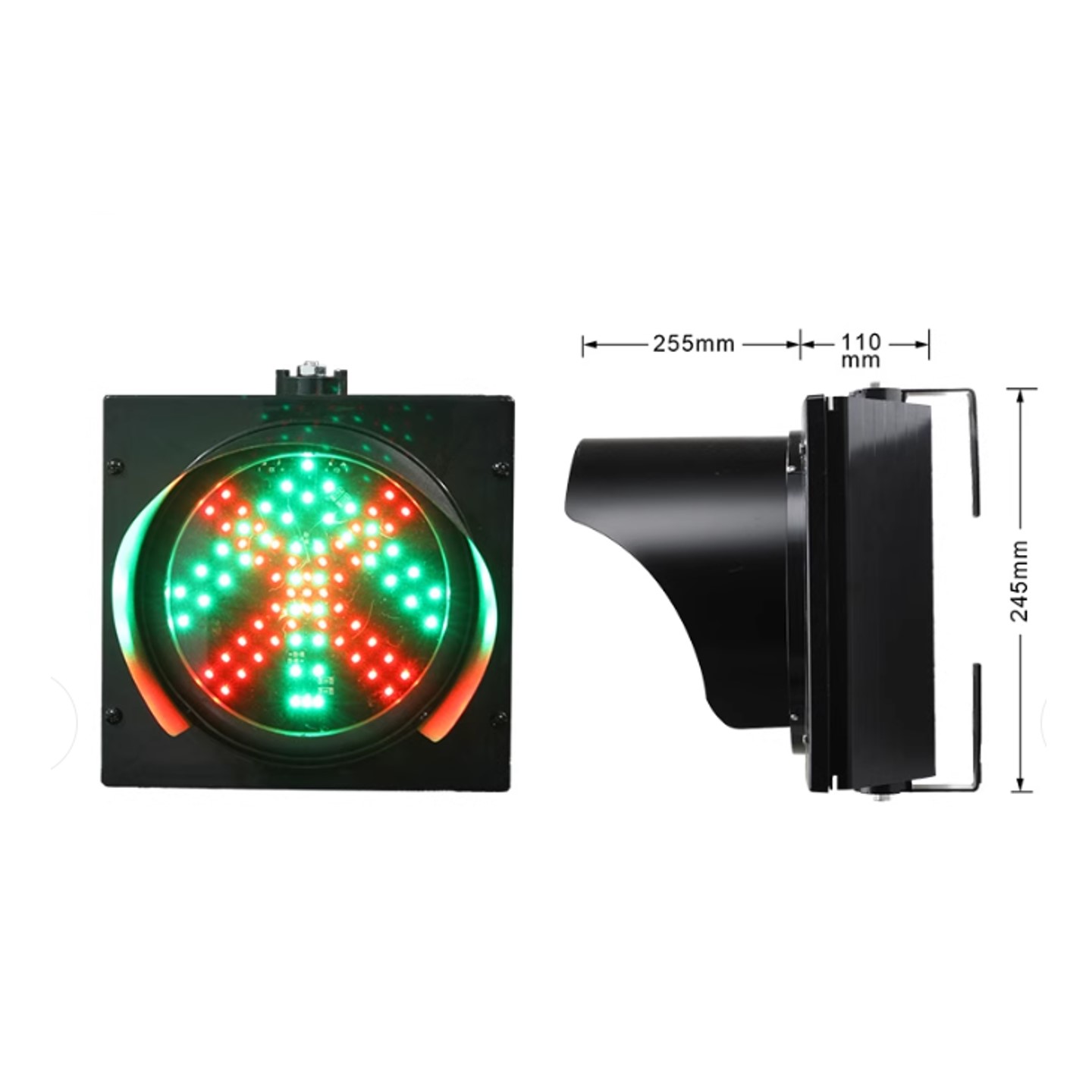

Size of Display Unit | φ300mm | Overall Dimensions | Width 355mm * Height 380mm * Thickness 130mm |
Viewing Distance | ≥300m | Net Weight | 5KG |

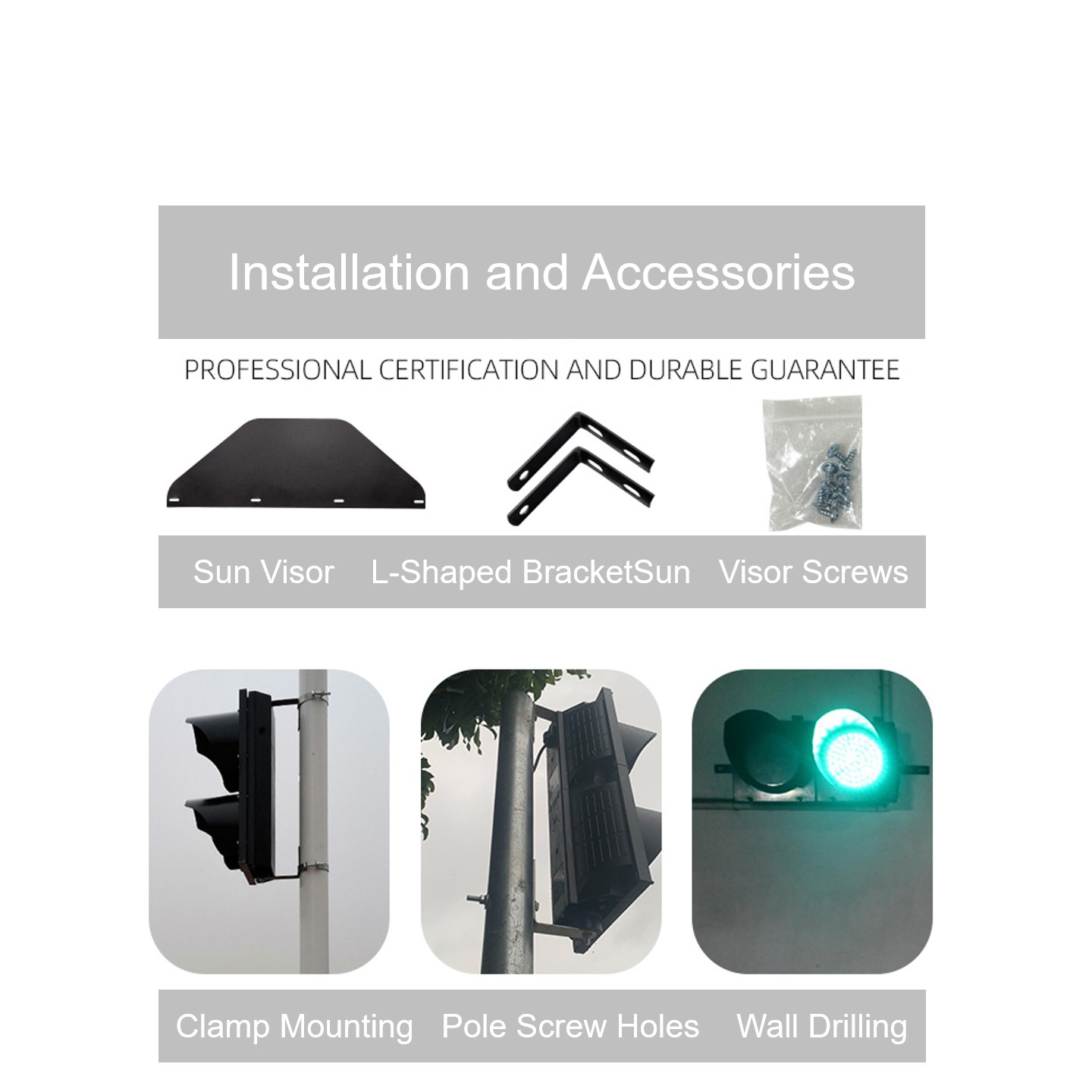

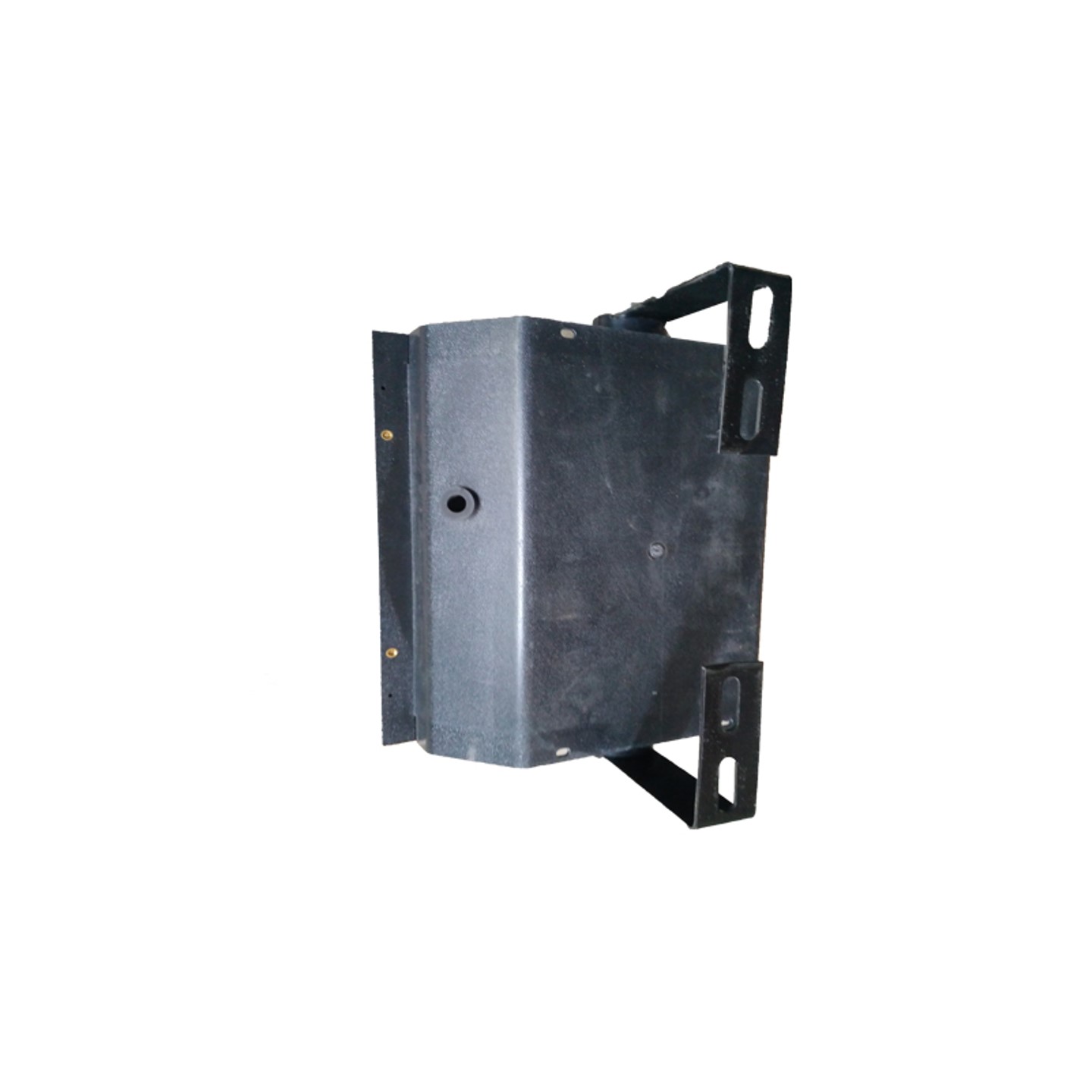

Working Voltage | AC220±20%,50Hz±2Hz | Installation Method | Back Frame (stainless steel strip and special fasteners) |
Rated Power | ≤10W | Package Size | Length 500mm * Width 500mm * Height 200mm(2 pcs in one package) |
Working Temperature | -40-80℃ | Package Gross Weight | 11KG(2 pcs) |
Working Humidity | ≤97%RH[(40±1),No Condensation] | Package Type | Carton |
