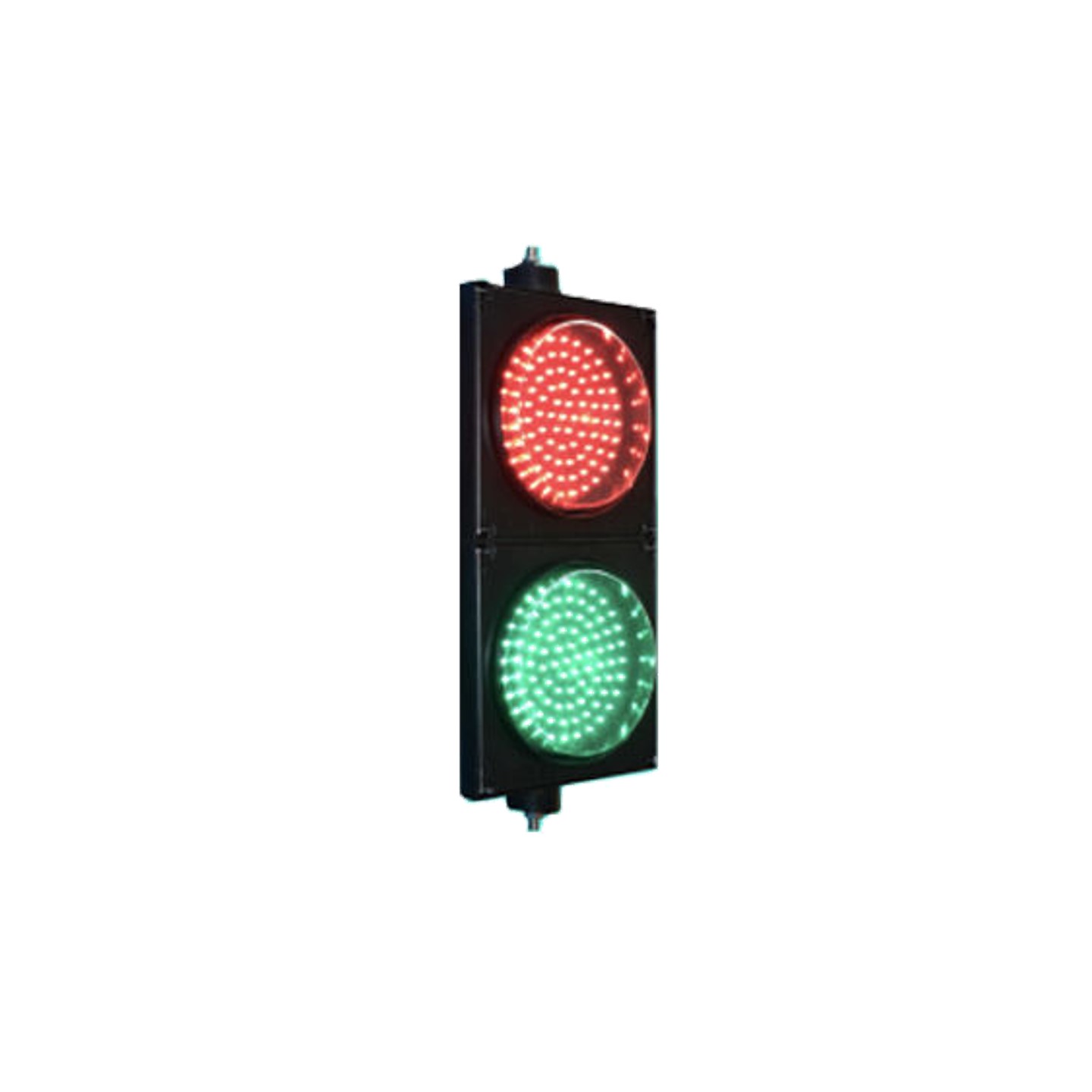

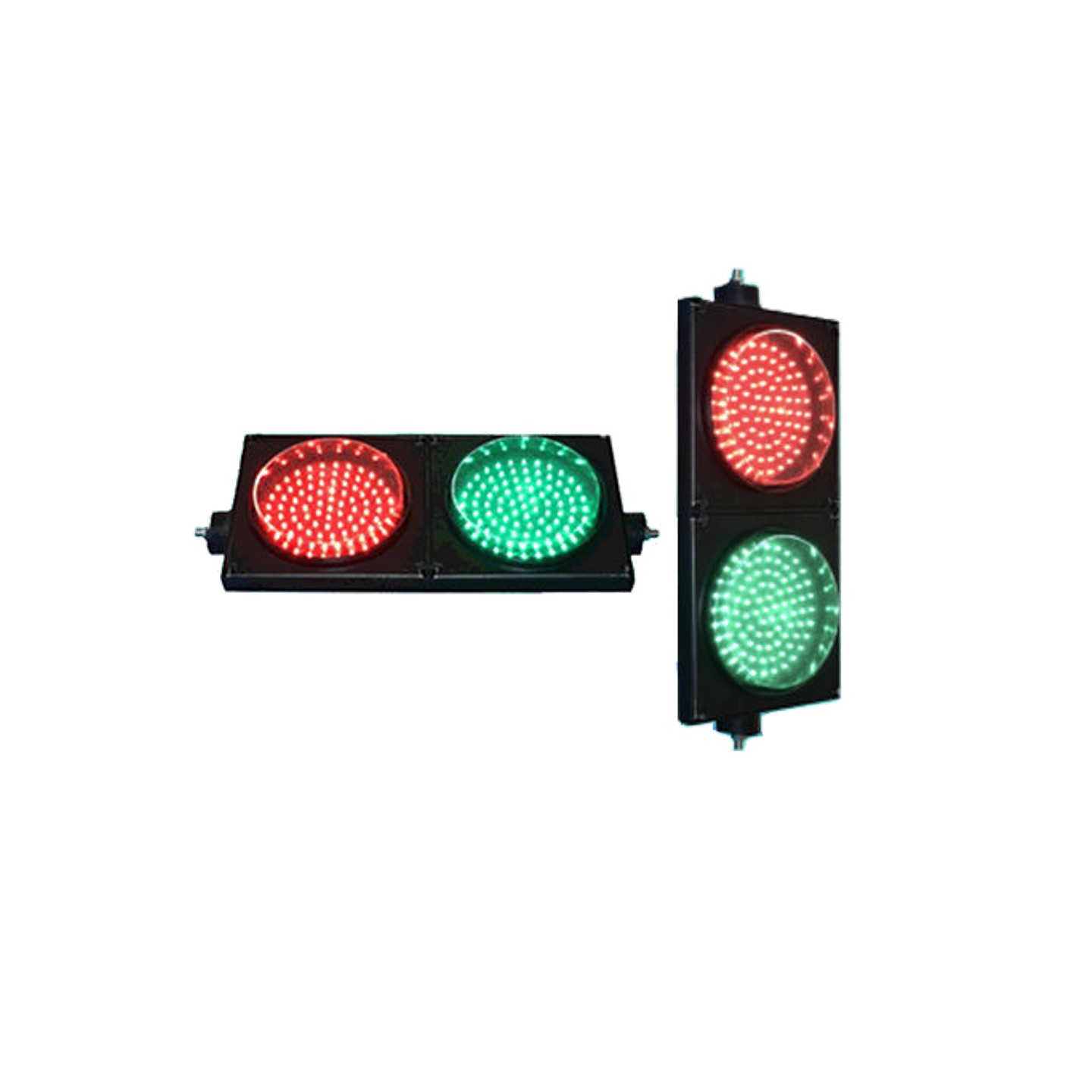

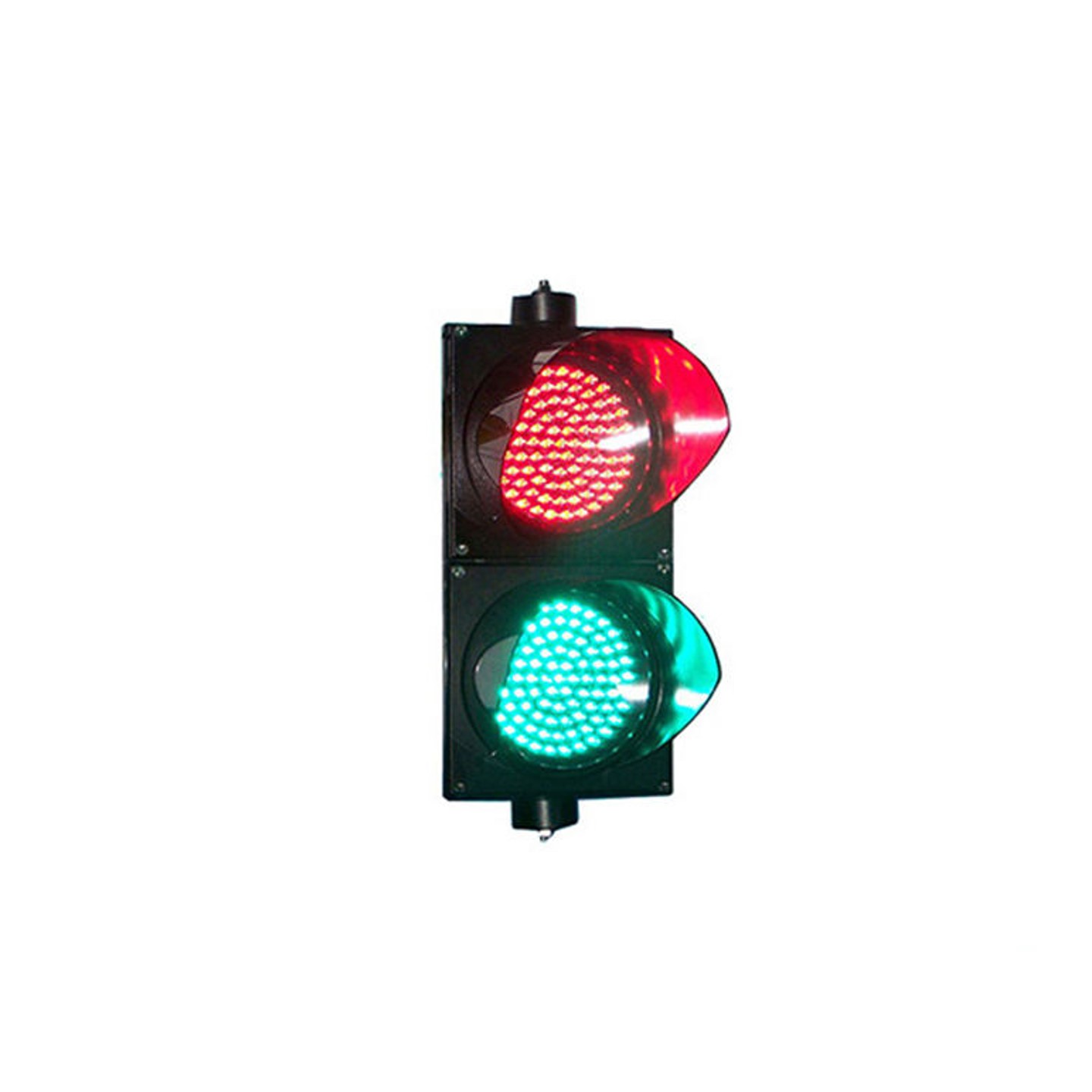

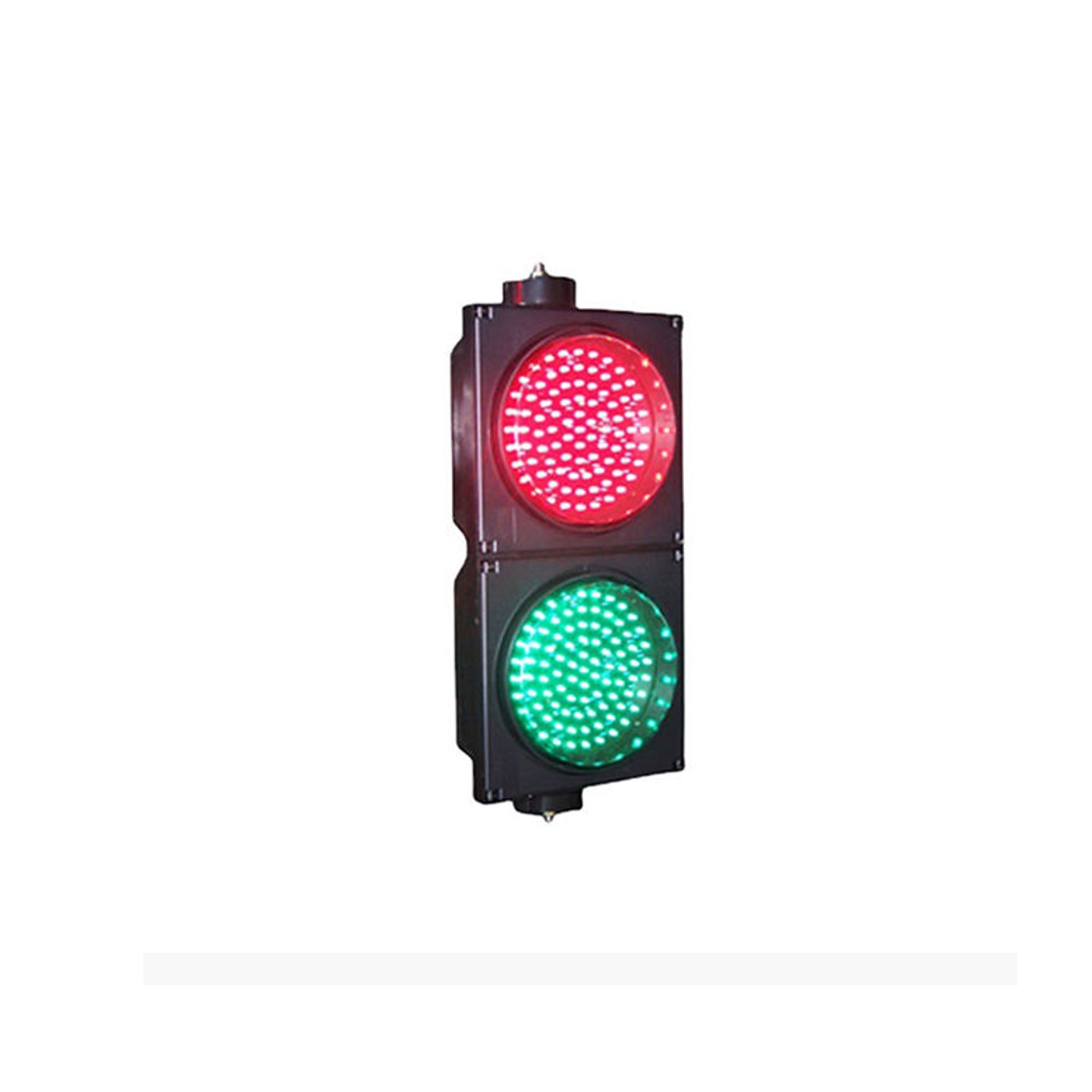

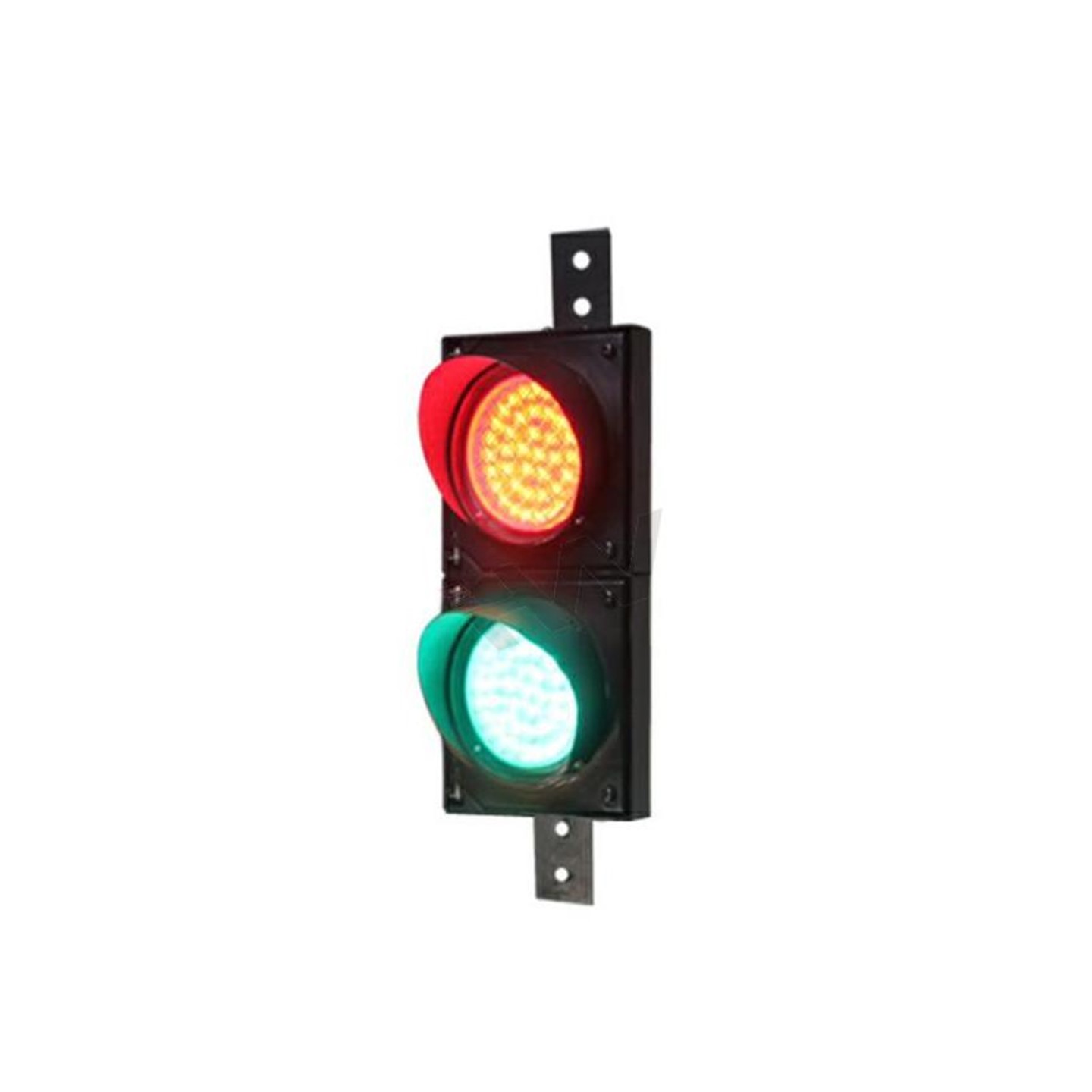

Traffic Light
Shape:100mm (4”) cobweb cover
High brightness LEDs with integrated optics
Moisture and dust tight seal
Total Harmonic Distortion<20%
Operating temperature: -30℃ to 60℃
Angle: Avg. ≥30° Down ≥30°
Operating voltage Range:12-24VDC 100-277VAC
Insulation Resistance:≥2M
Life:100,000H
Housing material: PC
Specification
| Color | Size(mm) | Profile | Voltage(V) | LEDs | Typical Wattage at 25℃ | Luminance (cd/㎡) | Typical Dominant Wavelength (nm) |
|---|---|---|---|---|---|---|---|
| Red | 100 | round | 12 - 24VDC/85-265VAC | 45S | <3 | >1000 | 625+5 |
| Green | 100 | 12 - 24VDC/85-265VAC | 45S | <3 | >1000 | 505+5 |
