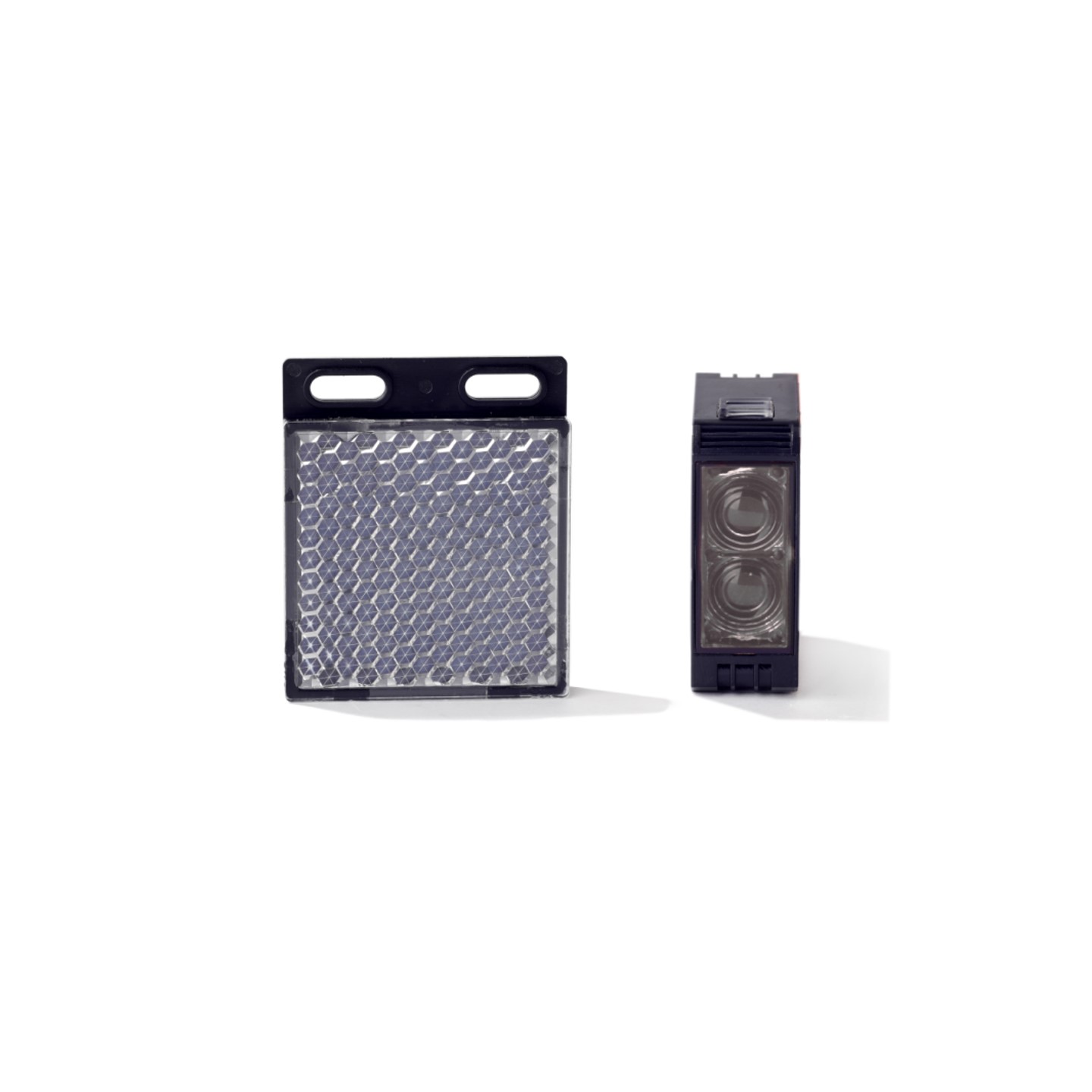

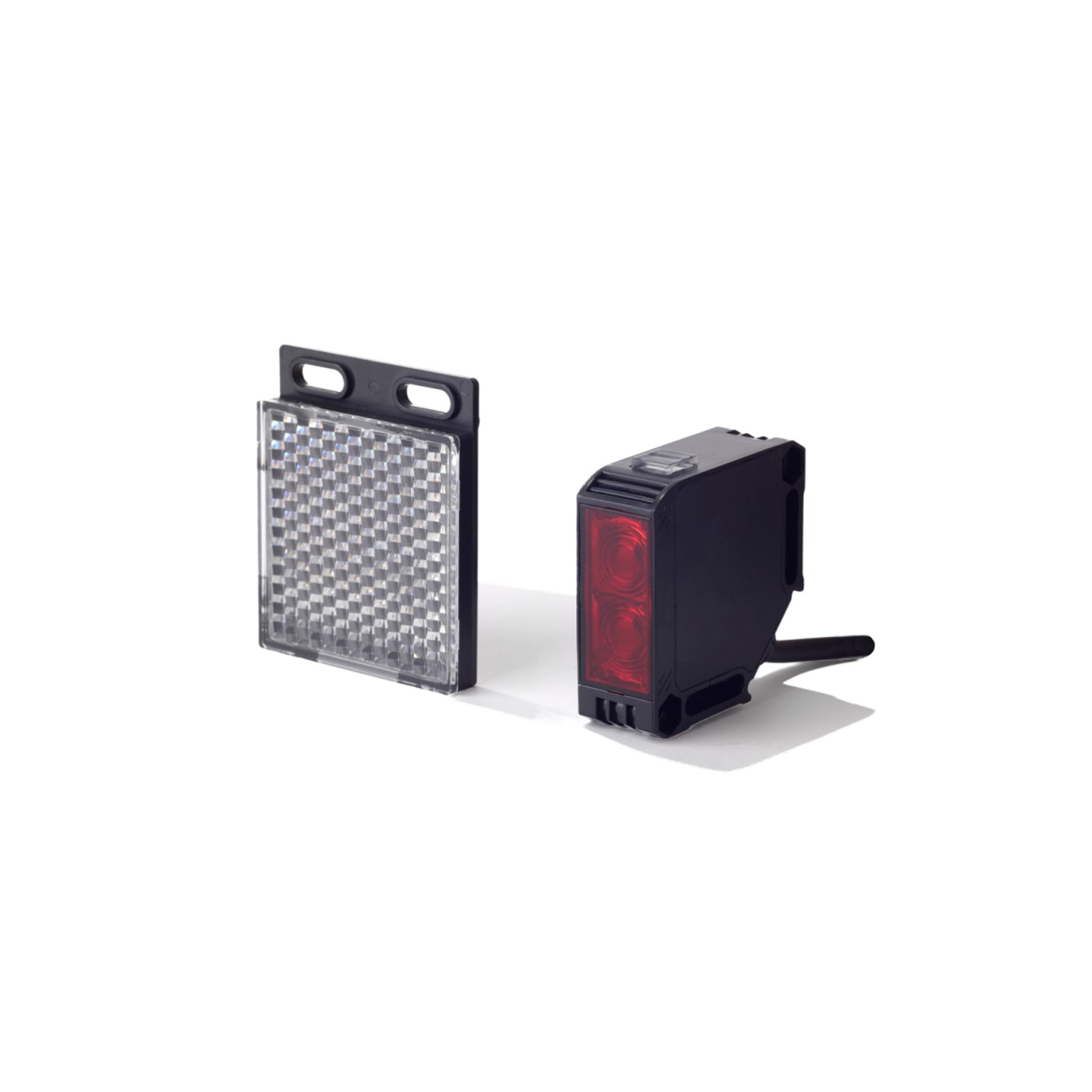

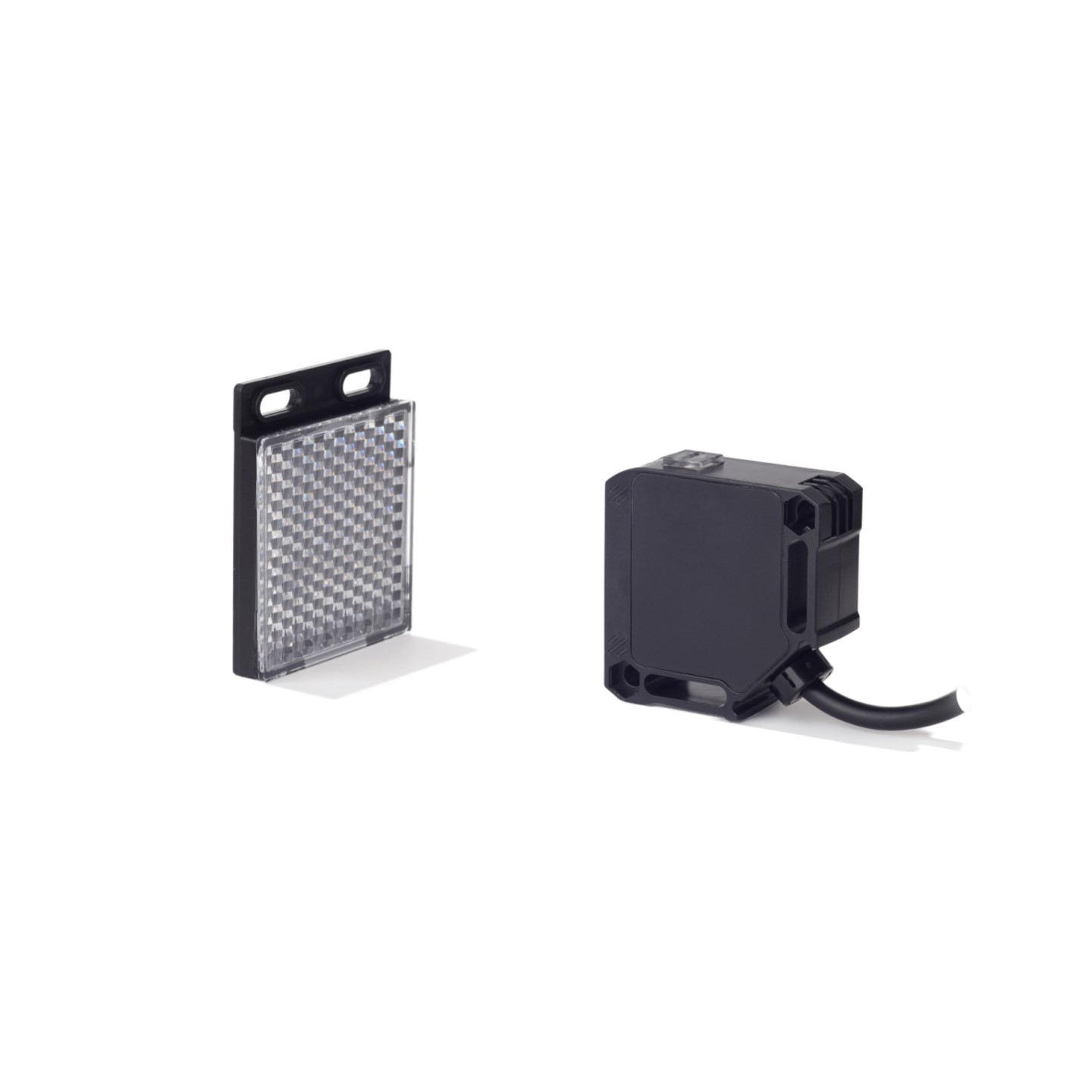

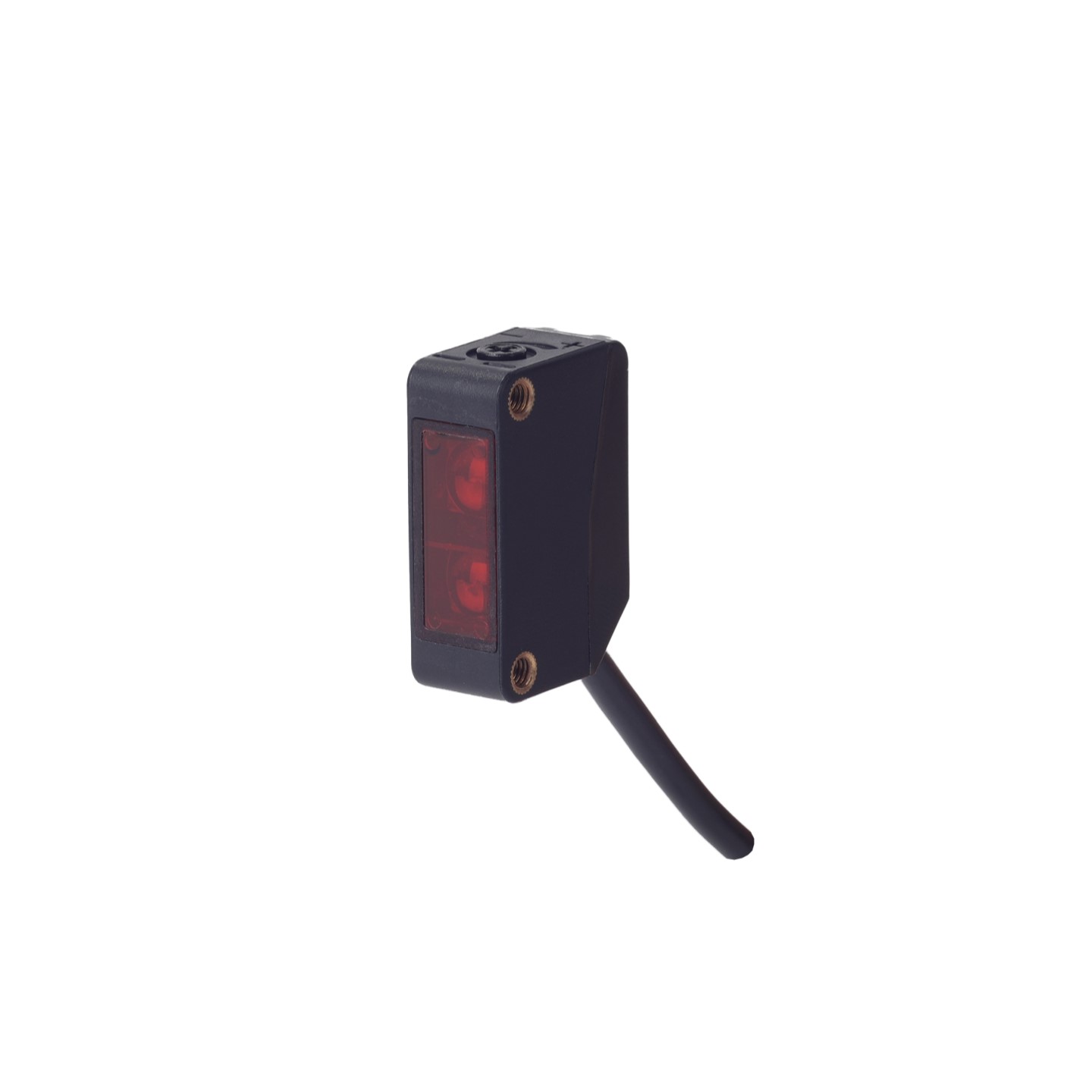

GN50 photoelectric switch
Retro-Reflective /Through-Beam/Self-heating
Detection range:3m-200m.
Highly resistance to sunlight, suitable for outdoor environments.
Advanced optical technology for long distance detection.
Strong electromagnetic compatibility.
With power reverse polarity protection, make your wiring easier.
Resistant to high and low temperatures, -40°C to +70°C.
Protection level IP67.
GN50 Specification
| Detection method | Opposed type | Retroreflective type | Diffuse reflection type | ||||||||||||||||
| Output mode (transistor output) / model | GN58TE | GN58T2E | GN58T3E | ||||||||||||||||
| 3-wire PNP N.O | GN58TPA | GN58T2PA | GN58T3PA | GN58MPA | GN58MPSA(M.S.R) | GN58DPA3500 | |||||||||||||
| 3-wire PNP N.C | GN58TPB | GN58T2PB | GN58T3PB | GN58MPB | GN58MPSB(M.S.R) | GN58DPB3500 | |||||||||||||
| 3-wire NPN N.O | GN58TNA | GN58T2NA | GN58T3NA | GN58MNA | GN58MNSA(M.S.R) | GN58DNA3500 | |||||||||||||
| 3-wire NPN N.C | GN58TNB | GN58T2NB | GN58T3NB | GN58MNB | GN58MNSB(M.S.R) | GN58DNB3500 | |||||||||||||

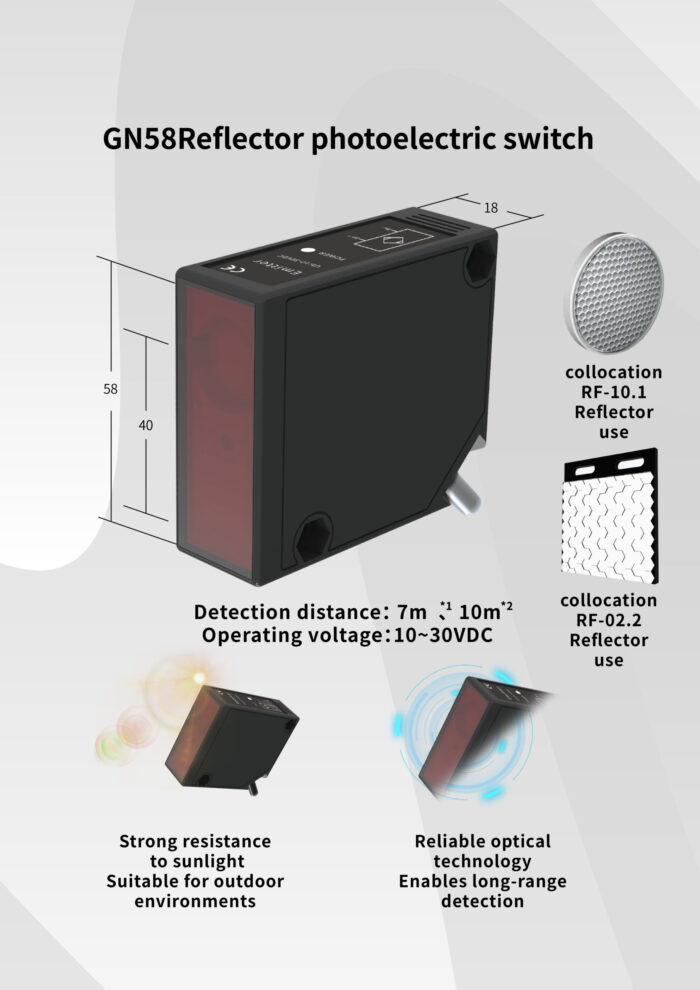

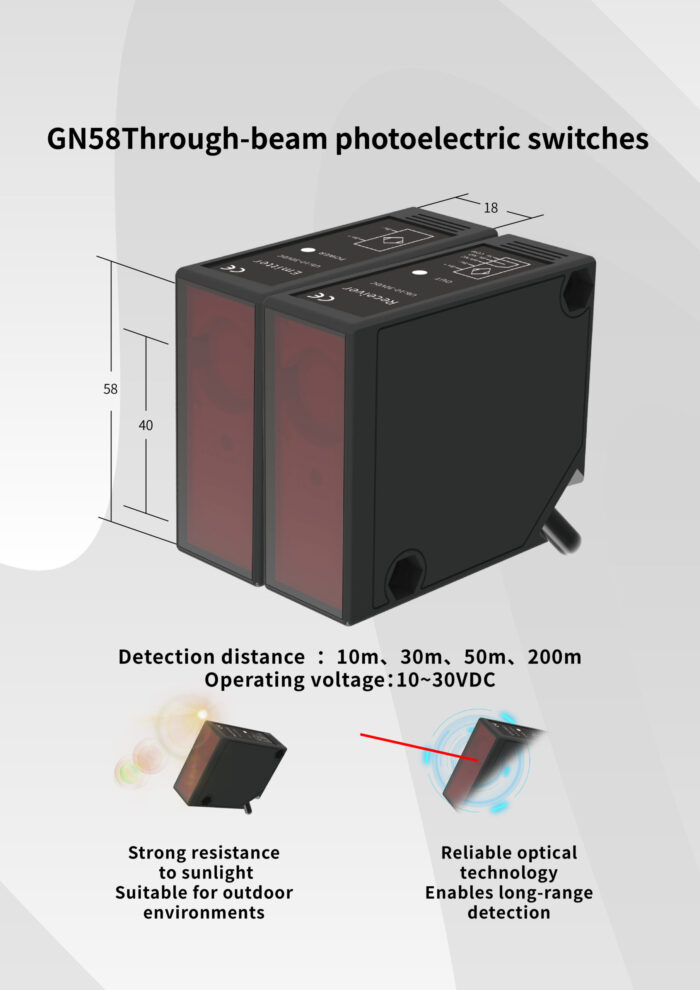

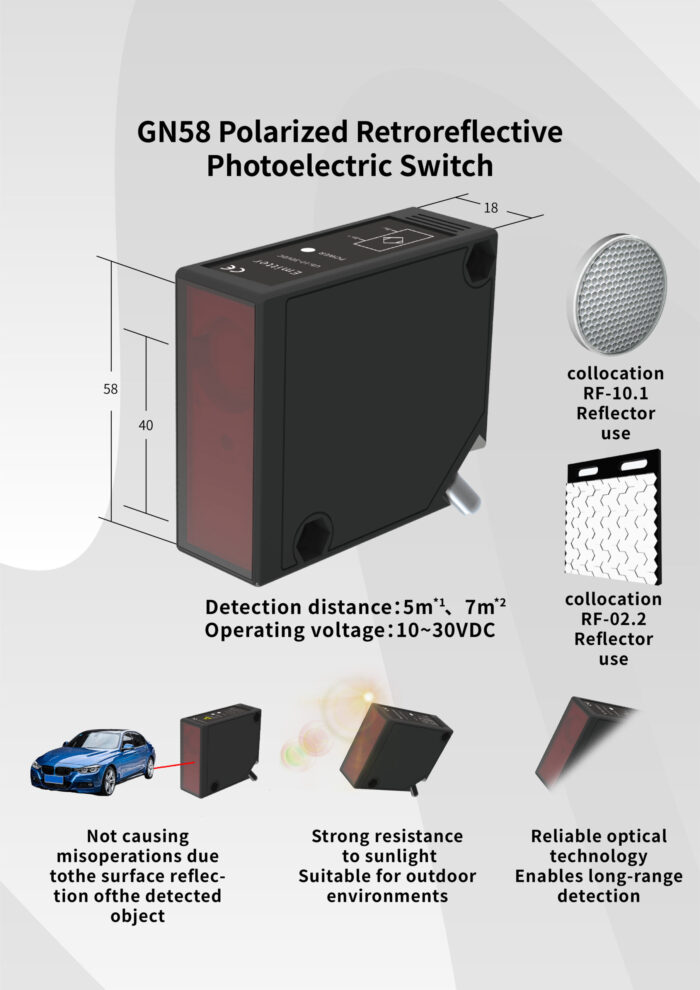

| Detection distance | 10m | 30m | 50m | 0.2～7m *1/0.2～10m *2 | 0.3～5m *1 /0.3～7m *2 | 1～3.5m *3 | |||||||||||||
| Light source | Infrared light 940nm | Infrared light 940nm | Infrared light 850nm | Red light 660nm | Infrared light 850nm | ||||||||||||||
| Operating voltage | 10-30V DC | ||||||||||||||||||
| Power consumption current | Transmitter ≤ 20mA, receiver ≤ 10mA | ≤20mA | |||||||||||||||||
| Working current | ≤100mA | ||||||||||||||||||
| Response time | ≤3ms | ||||||||||||||||||
| Power-on delay | 200ms | ||||||||||||||||||
| Repeat accuracy | 10% | ||||||||||||||||||
| Output indication | Green light for power indication, red light for output indication | ||||||||||||||||||
| Protection function | Short circuit protection, power reverse polarity protection | ||||||||||||||||||
| Operating temperature | -25～55℃ | ||||||||||||||||||
| Protection level | IP67 | IP67 | IP65 | ||||||||||||||||
| Material | Shell: ABS; Lens: PMMA | ||||||||||||||||||
| Wiring method | 2m cable | ||||||||||||||||||
| Accessories | For opposed type (2 metal brackets, 4 sets of screws and nuts), retroreflective type (2 metal brackets, 2 sets of screws and nuts), diffuse reflection type (1 flat-head screwdriver, 1 metal bracket, 2 sets of screws and nuts) | ||||||||||||||||||
