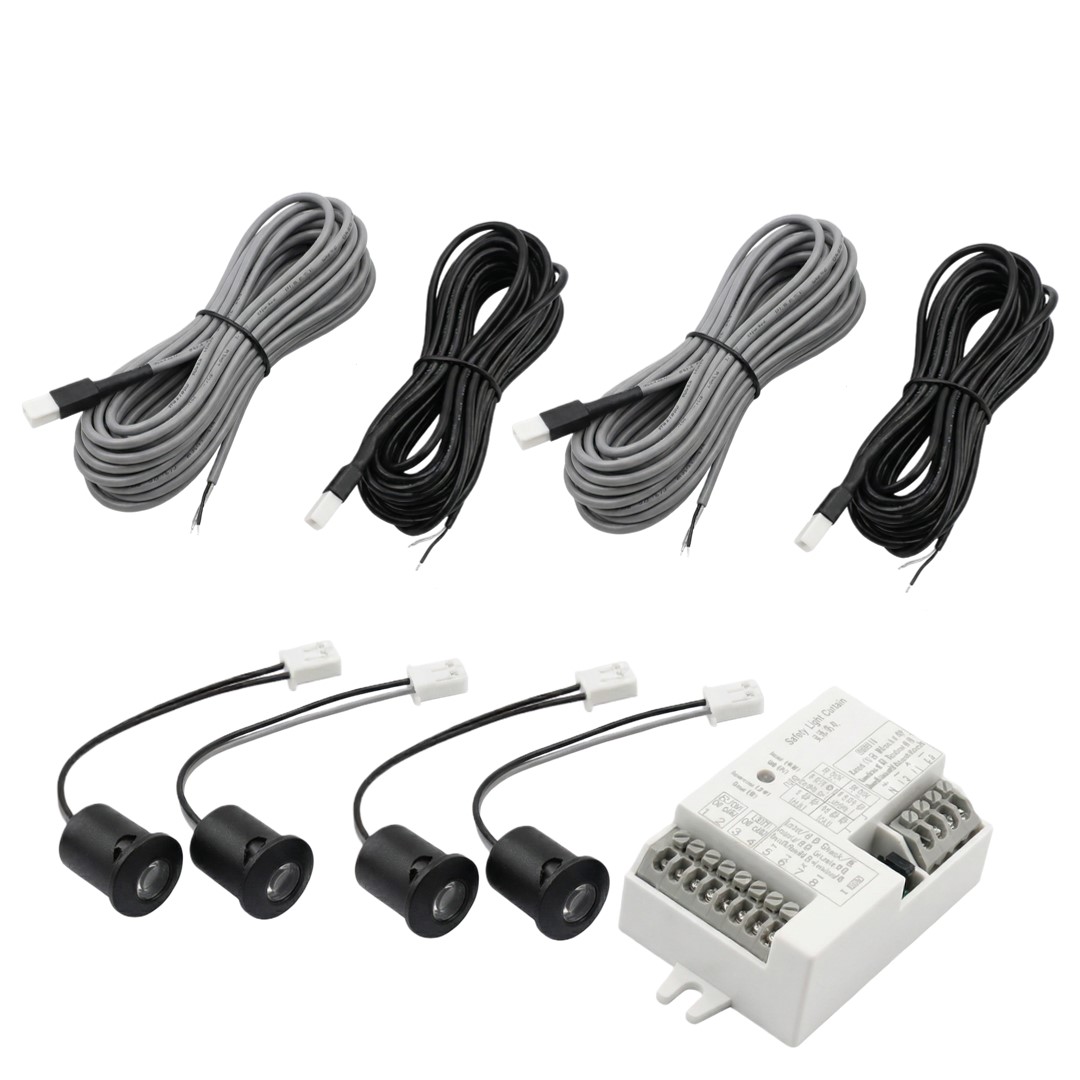

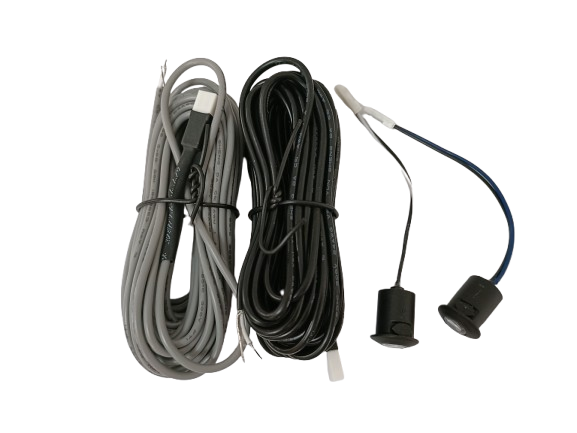

Photoeye Sensor for Sliding Door
Infrared Photoelectric Safety Sensor (Photoeye) designed for reliable presence detection in automatic doors and access control systems. The sensor uses infrared through-beam technology to detect people or objects passing through the doorway and immediately sends a signal to stop or reverse door movement, improving operational safety.
It is suitable for sliding doors, swing doors, revolving doors, industrial and commercial entrances, and features stable performance, fast response, and easy installation.
It is suitable for sliding doors, swing doors, revolving doors, industrial and commercial entrances, and features stable performance, fast response, and easy installation.
Photoeye Specification
| Item | Specification | Item | Specification |
|---|---|---|---|
| Realize technology | Infrared photoelectric and microprocessor | Detection range | 0.1 – 10 m |
| Relay output | Blocking remains continuously closed/open | Anti-interference performance | / |
| Transmission frequency | / | Detection mode | Infrared photoelectric switch |
| Maximum contact voltage | 220V | Case material | ABS engineering plastic |
| Transmit power | / | Minimum detection speed | / |
| Maximum contact current | 3A (resistance) | Shell color | White |
| Emission frequency density | / | Power supply voltage | 12V – 36V AC/DC |
| Maximum switching power | 30W (DC) / 60VA (AC) | Case size | 71.5 × 41 × 23.5 mm |
| Maximum installation height | / | Power frequency | 50 – 60 Hz |
| Temperature range | -20°C ~ +70°C | Weight | 0.26 kg |
| Tilt angle | / | Consumption power | < 2W (VA) |
| Protection level | / | Conductor length | 5.5 m |
